Geotextile Tube Applications
Geotextile tube applications for coastal protection, marine construction, temporary works, sediment and sludge dewatering, and ecological restoration.
Geotextile Tube Applications
Geotextile Tube Applications
Flexible containment, coastal protection and dewatering systems built with high-strength woven geotextile tubes.
On This Page
System Functions
One System, Four Practical Functions
Geotextile tubes combine a high-strength woven container with hydraulic filling. The selected fabric, seam design, tube dimensions and filling method are matched to the retained material, site geometry and required service life.
Containment
Retains sand, sediment, sludge or organic solids within a defined engineered footprint.
Filtration
Allows water to pass through the fabric while retaining the designed solid fraction.
Dewatering
Reduces moisture and material volume through repeated filling and gravity drainage.
Structural Support
Forms flexible barriers, working bases and dike cores after the retained fill consolidates.

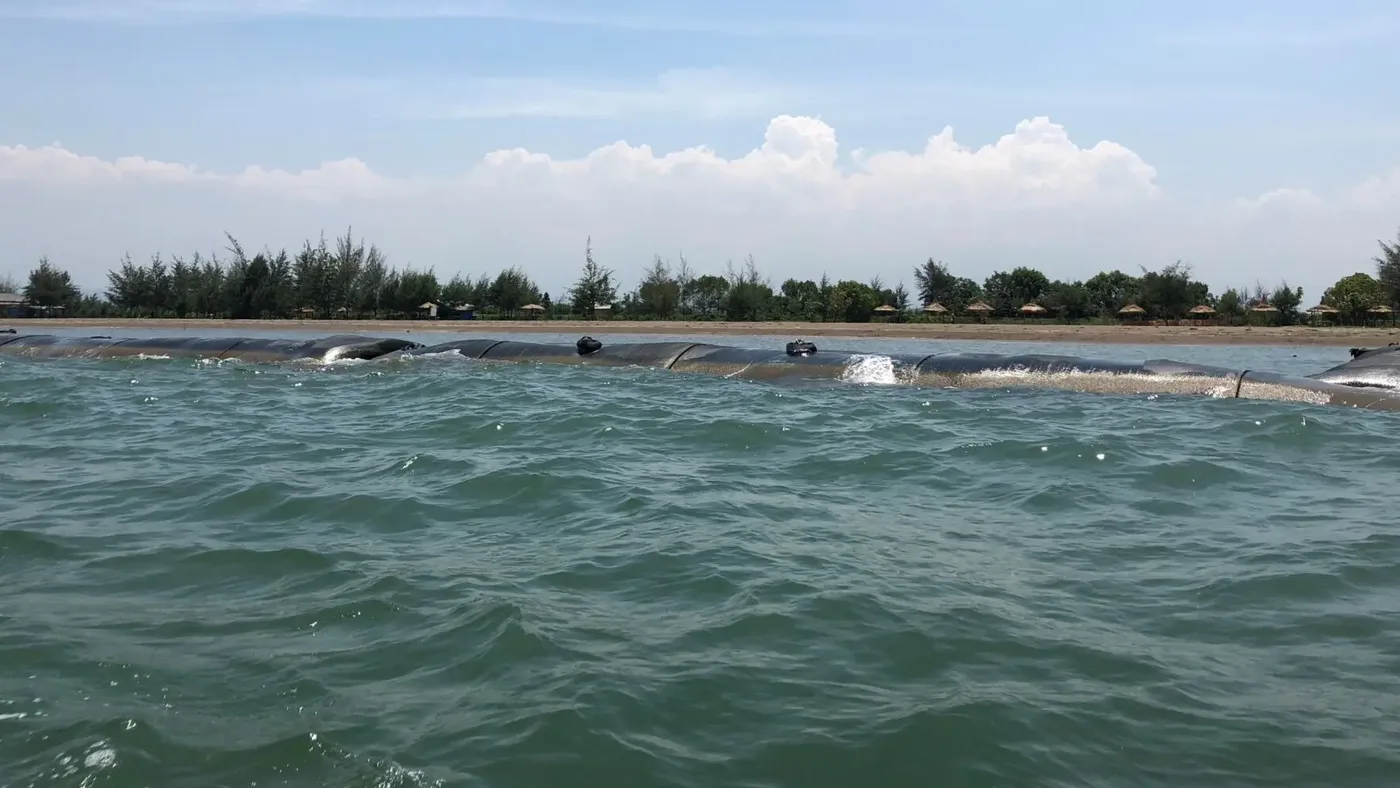

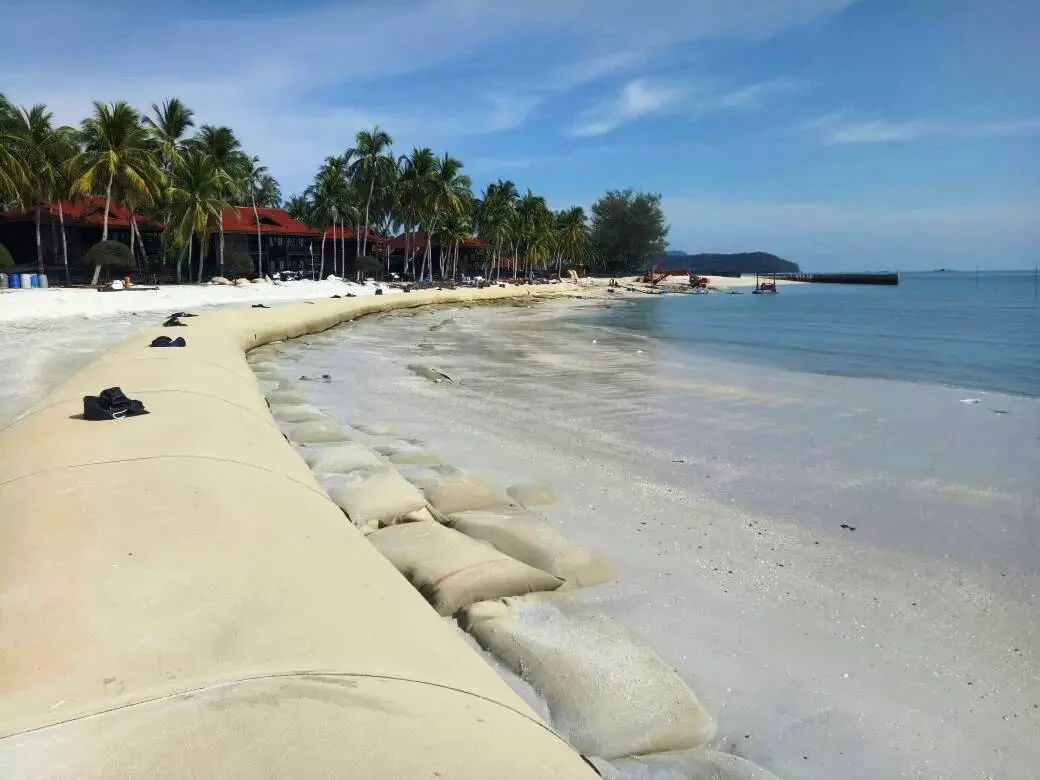

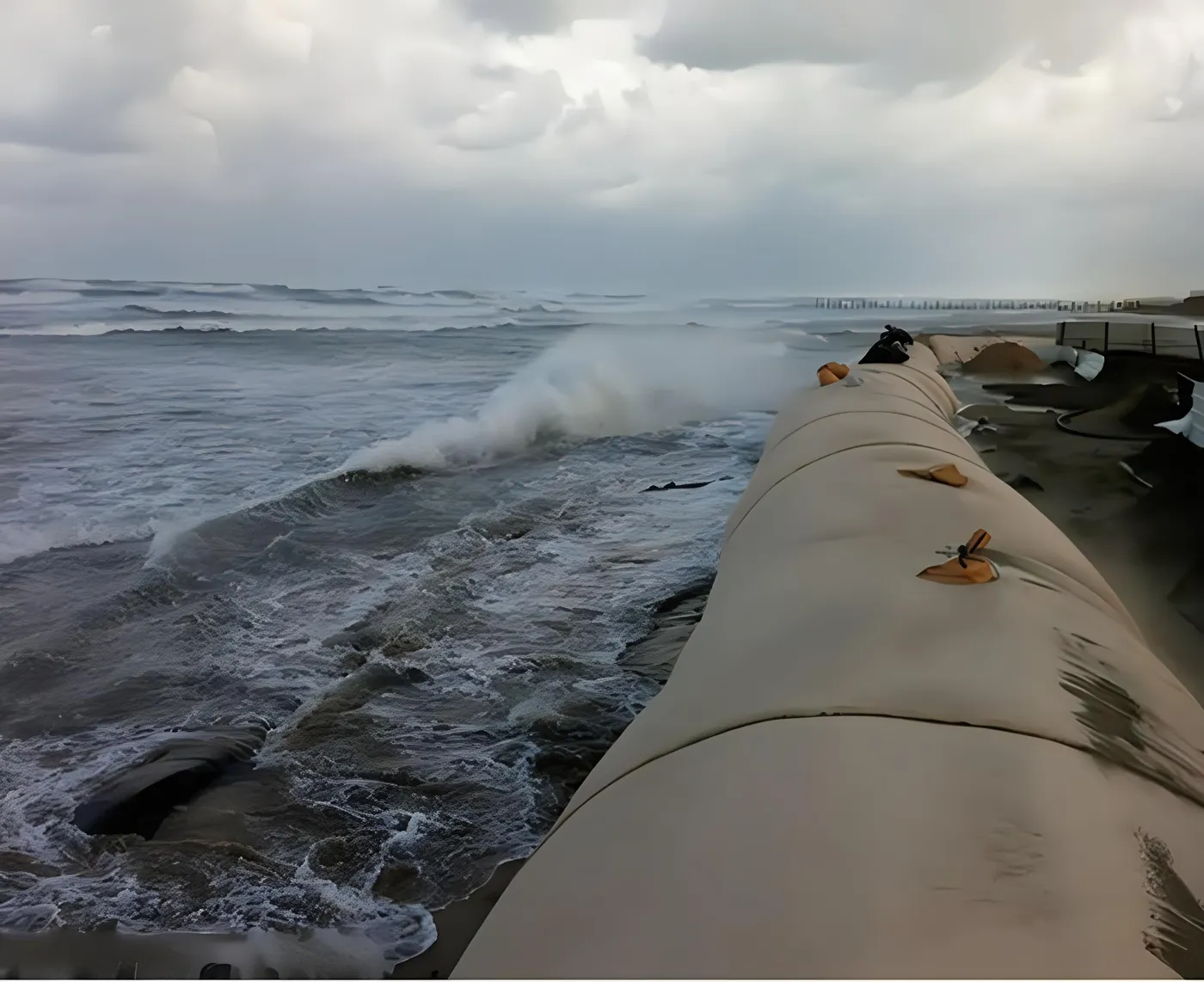

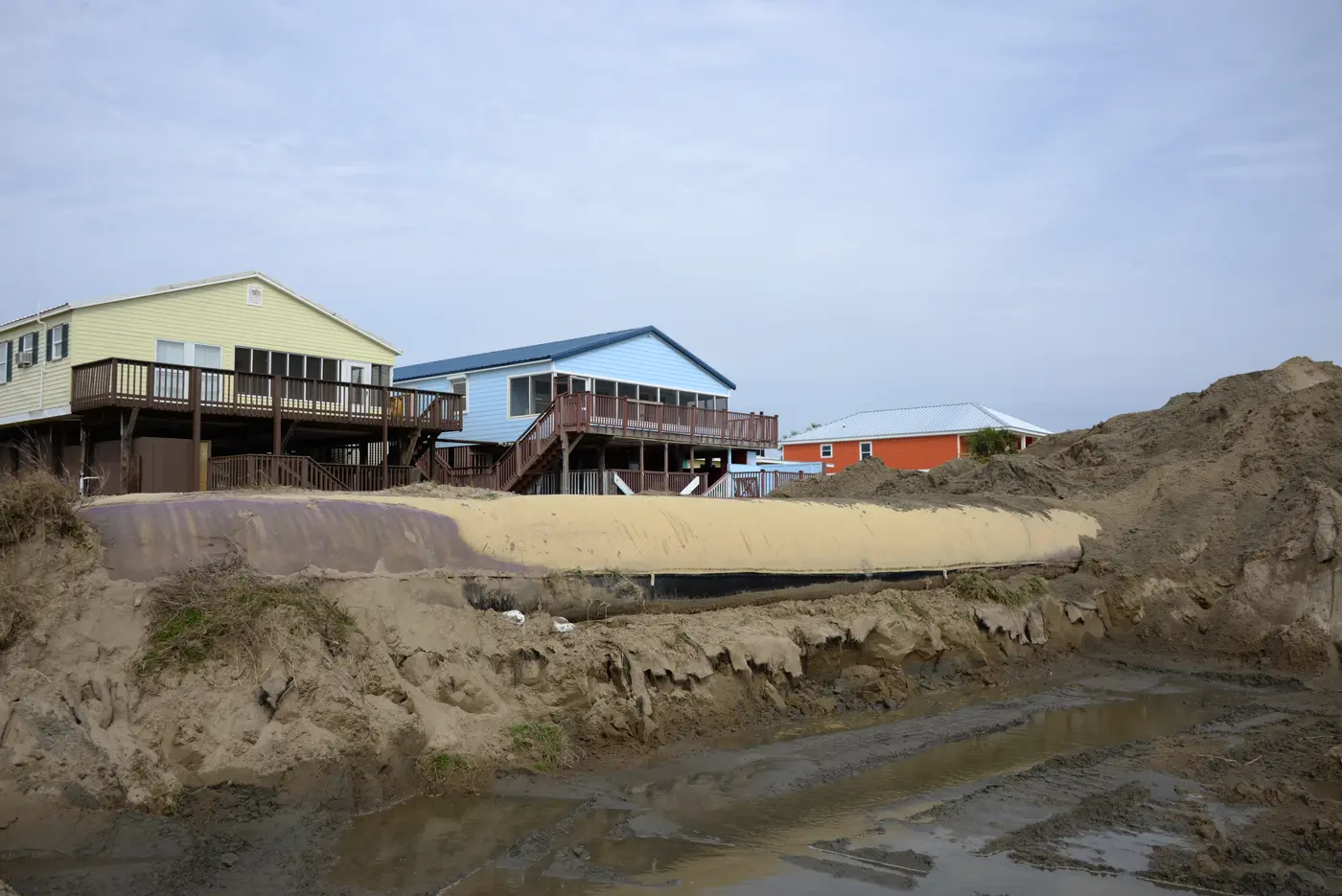

01 / Coastal Protection

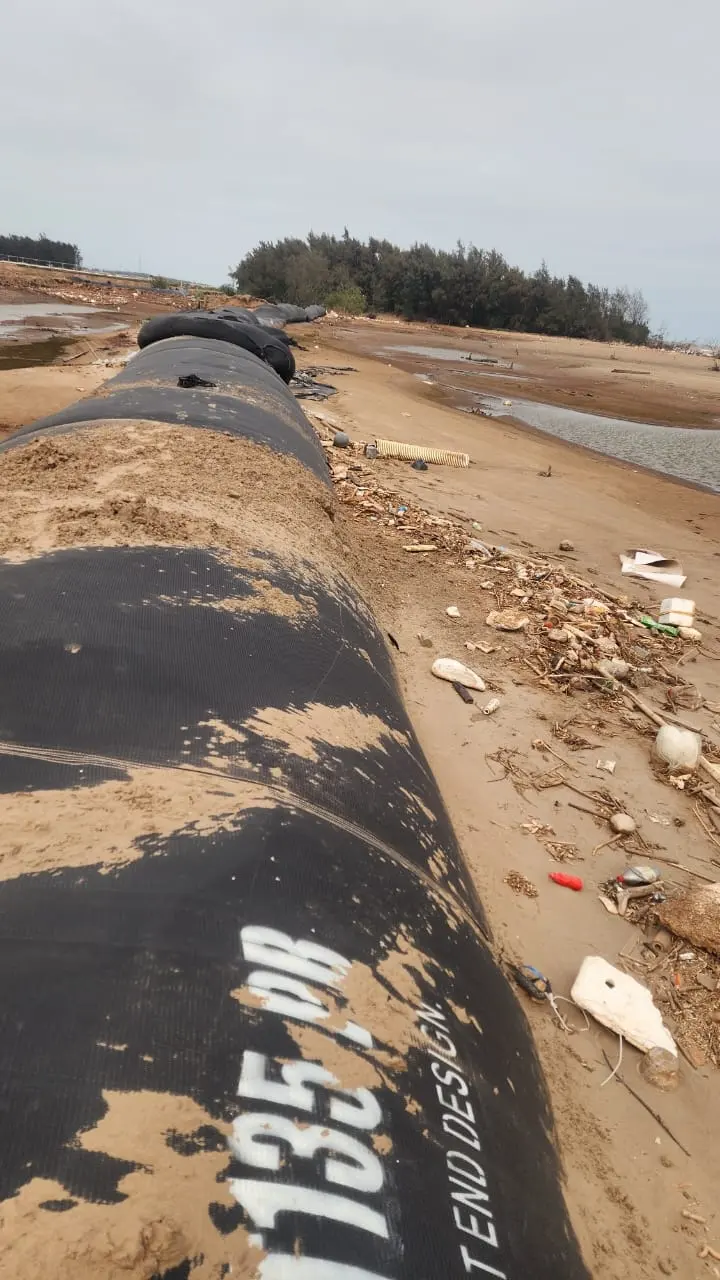

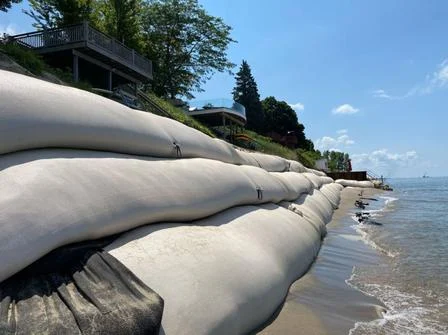

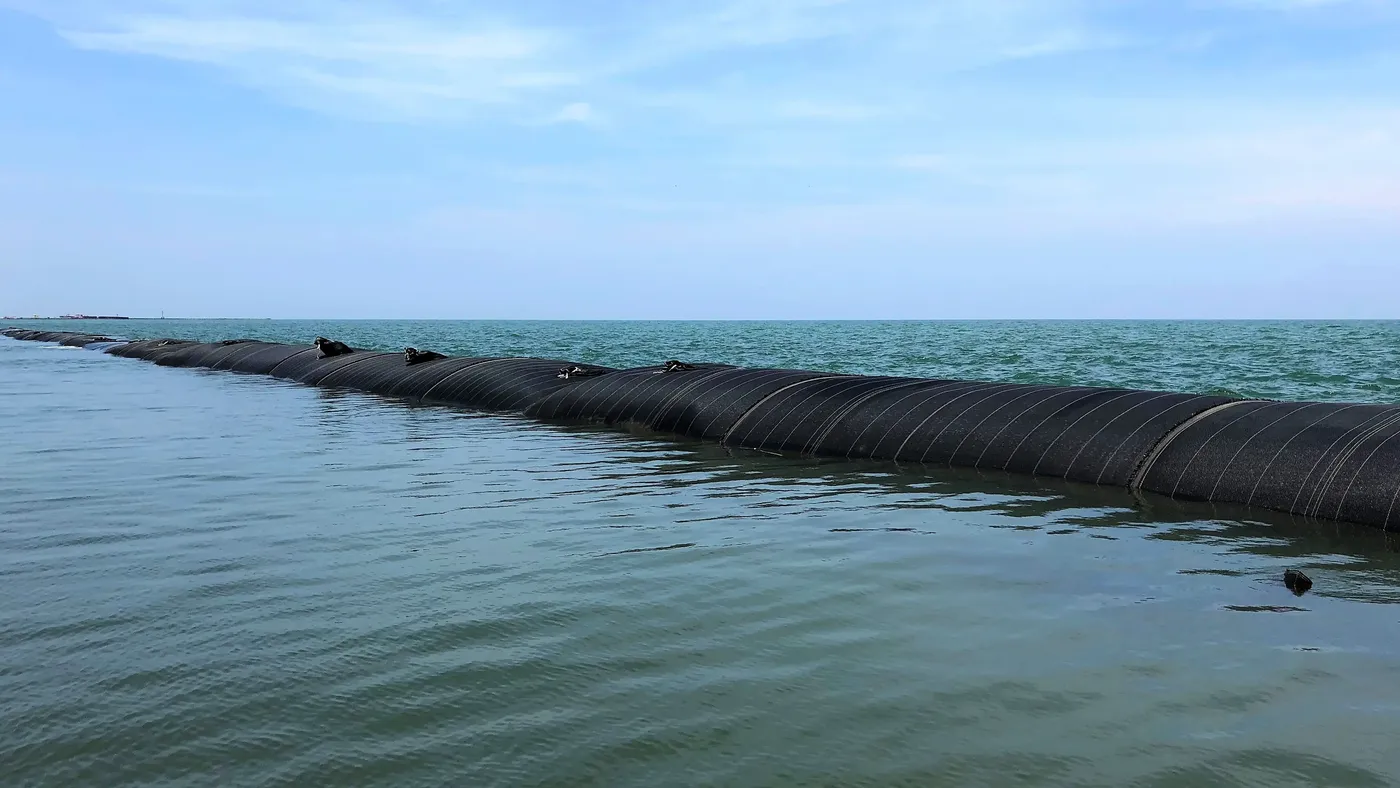

seawall
High-strength UV-stabilized geotextile tubes are placed along shorelines or offshore and hydraulically filled with local sea sand or dredged sediment. Water drains through the engineered fabric while the retained sand consolidates into a flexible barrier that dissipates wave energy, reduces erosion and helps stabilize beaches, seawalls and breakwaters.
Typical Project Challenges
- Wave attack and coastal erosion
- Soft or uneven seabed
- Local scour around rigid structures
- Long-term UV and saltwater exposure
Wave Attenuation
Shore Protection
Sand Retention
Flexible Structure
Applicable Product

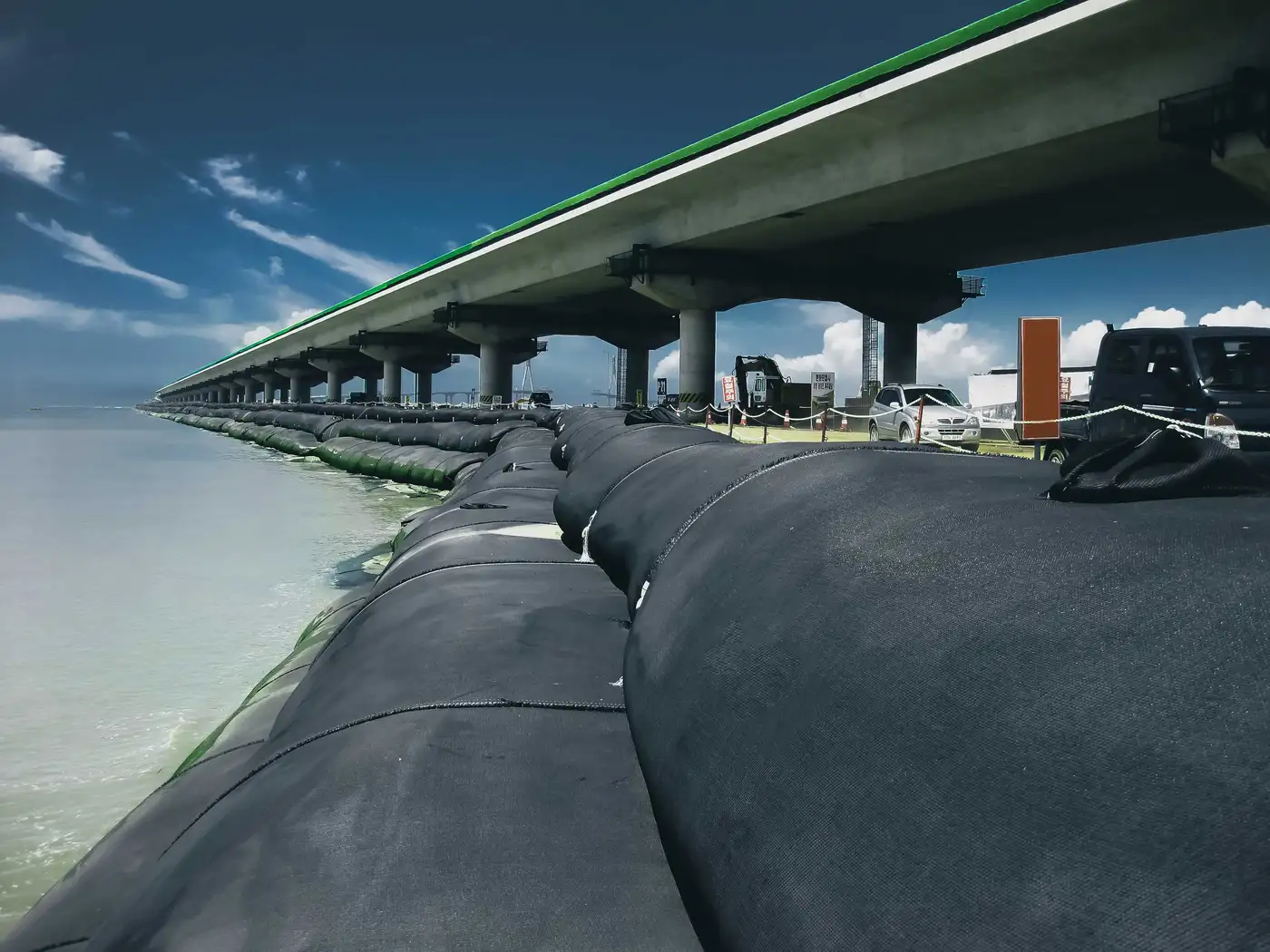

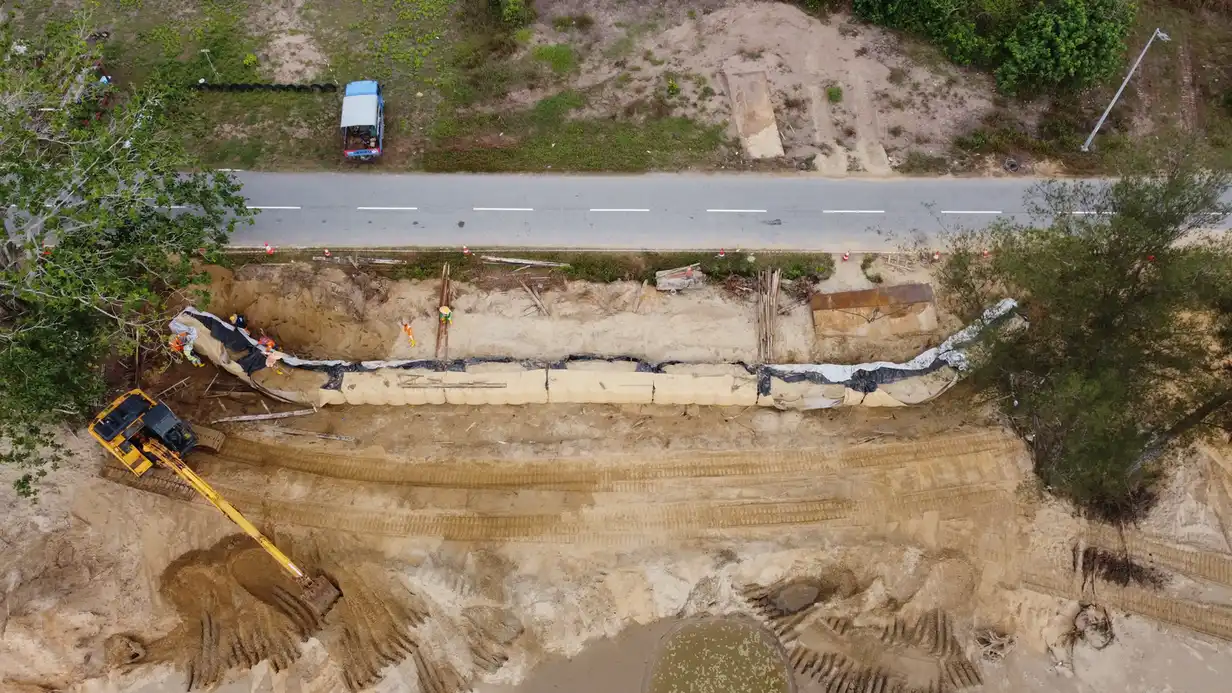

02 / Marine Construction

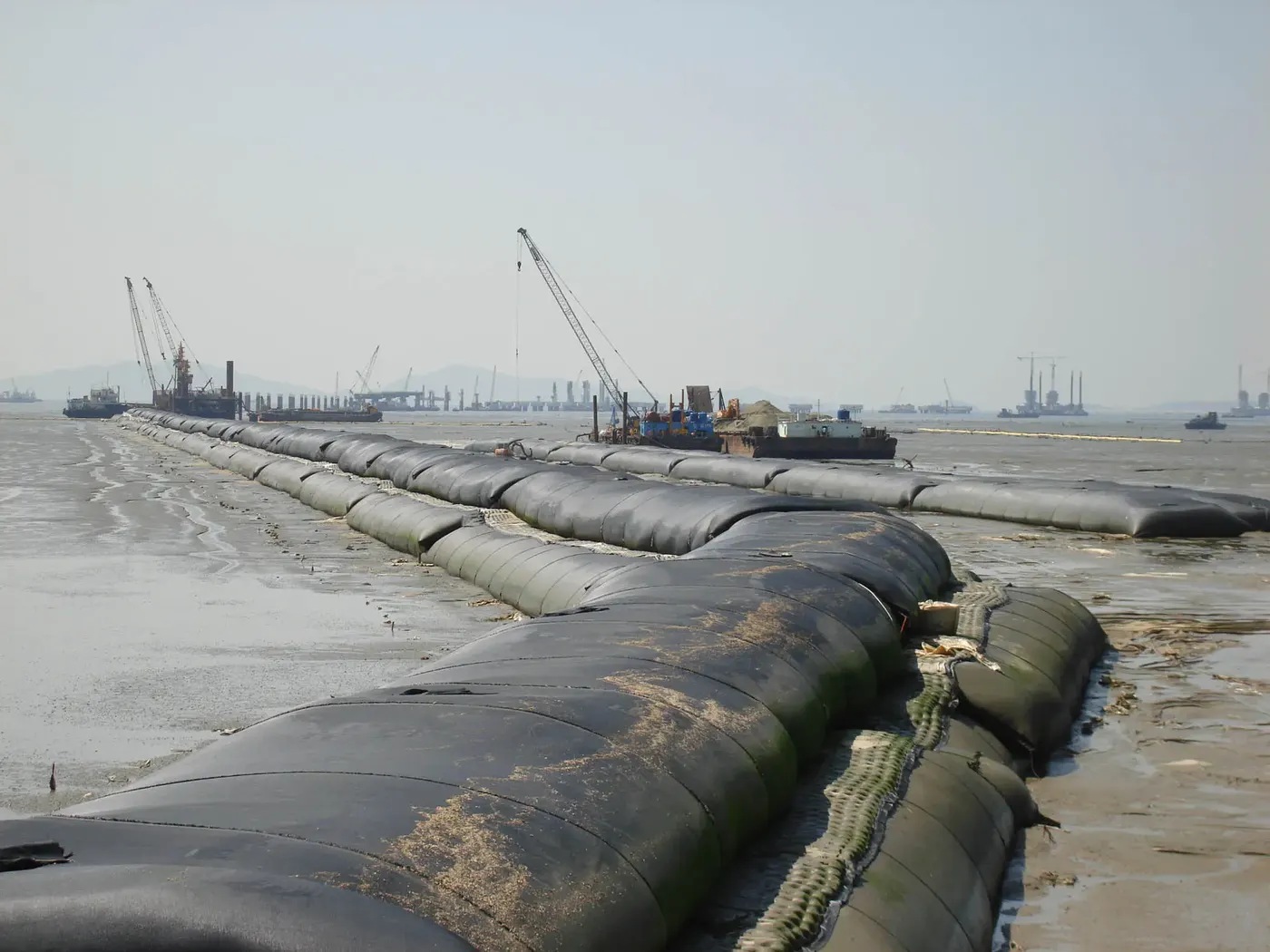

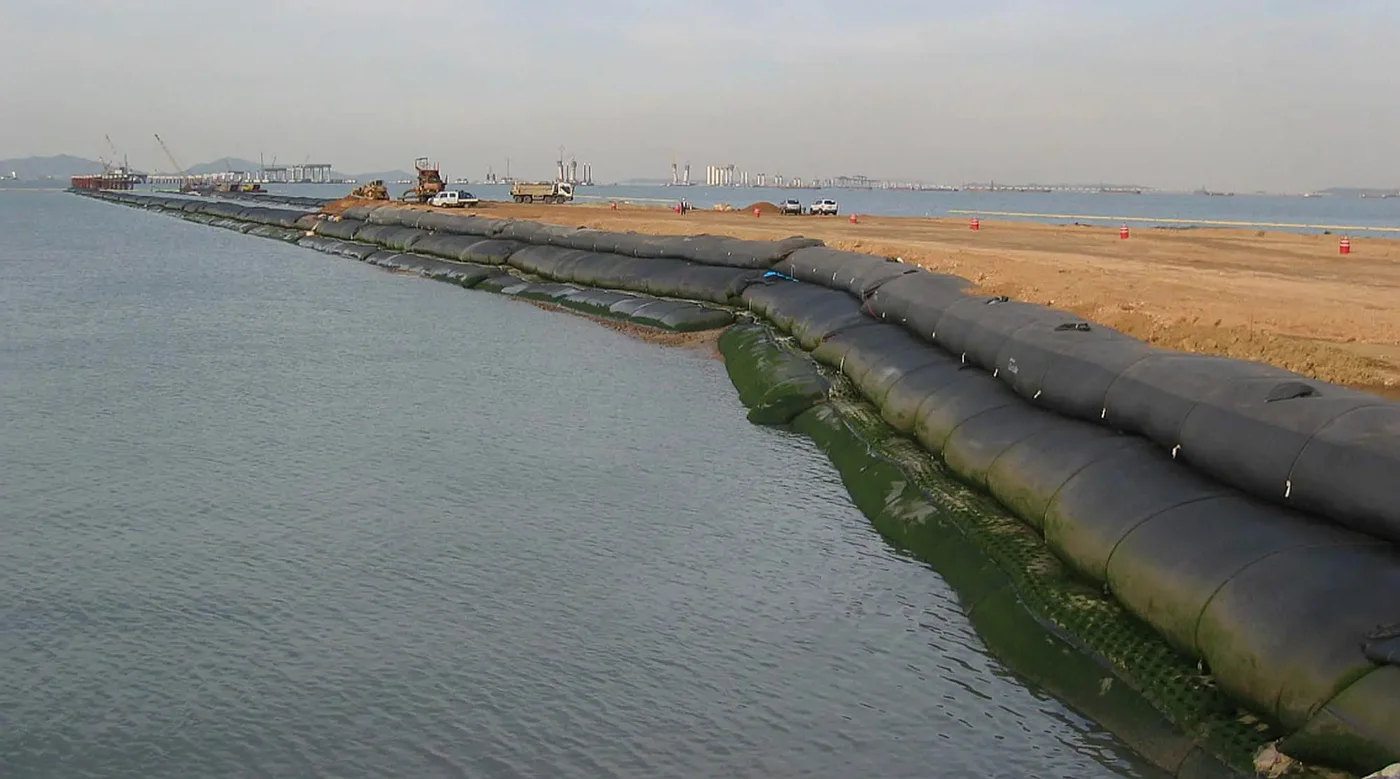

artificial island
Large geotextile tubes form the core dikes for land reclamation, artificial islands and wetland reconstruction. Tubes filled with sea sand or dredged sediment can be stacked in staggered layers to create continuous cofferdams, accommodate uneven settlement on soft seabeds and reduce ecological disturbance compared with rock-fill or steel-sheet-pile solutions.
Typical Project Challenges
- Low-bearing-capacity seabed
- Cofferdam continuity
- Uneven settlement
- Sensitive intertidal habitats
Land Reclamation
Cofferdam
Island Formation
Wetland Restoration
Applicable Product

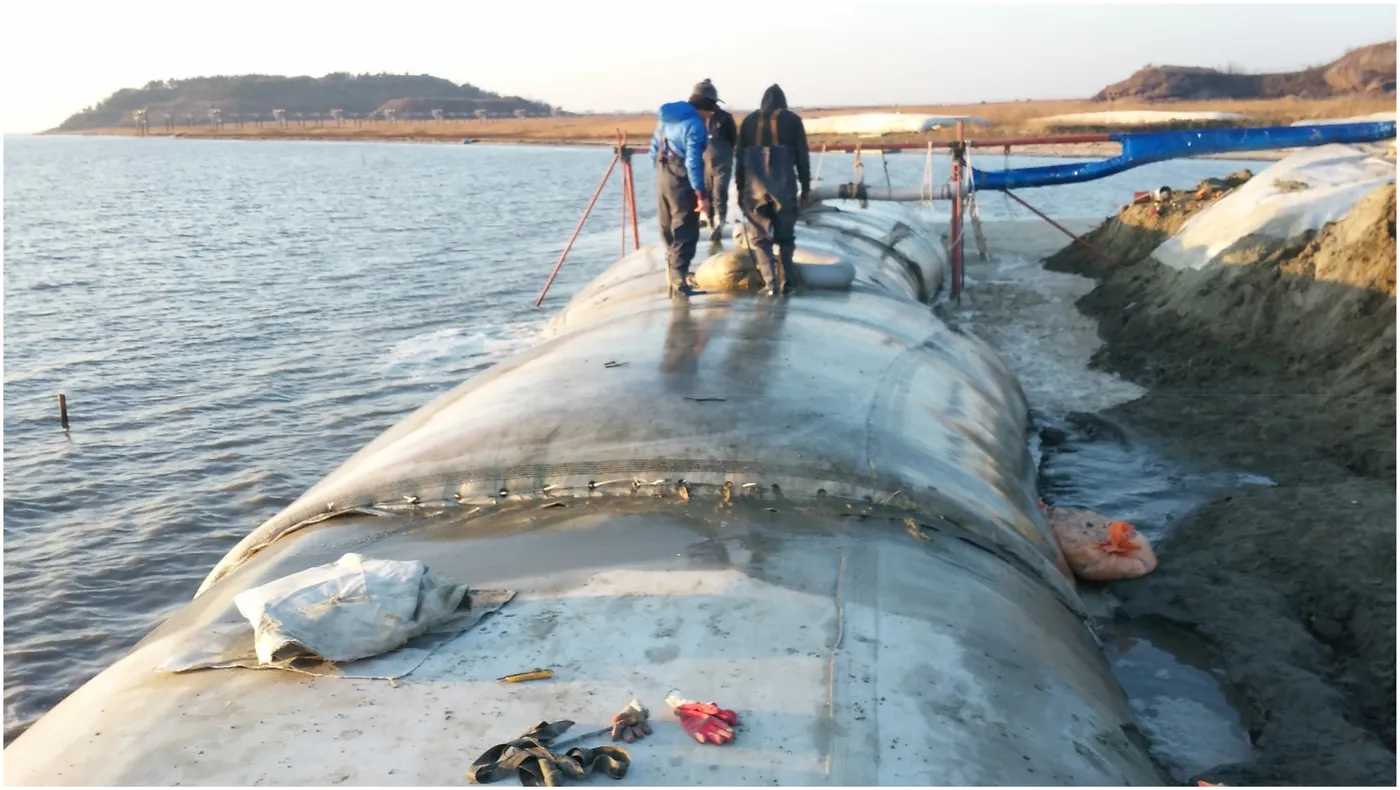

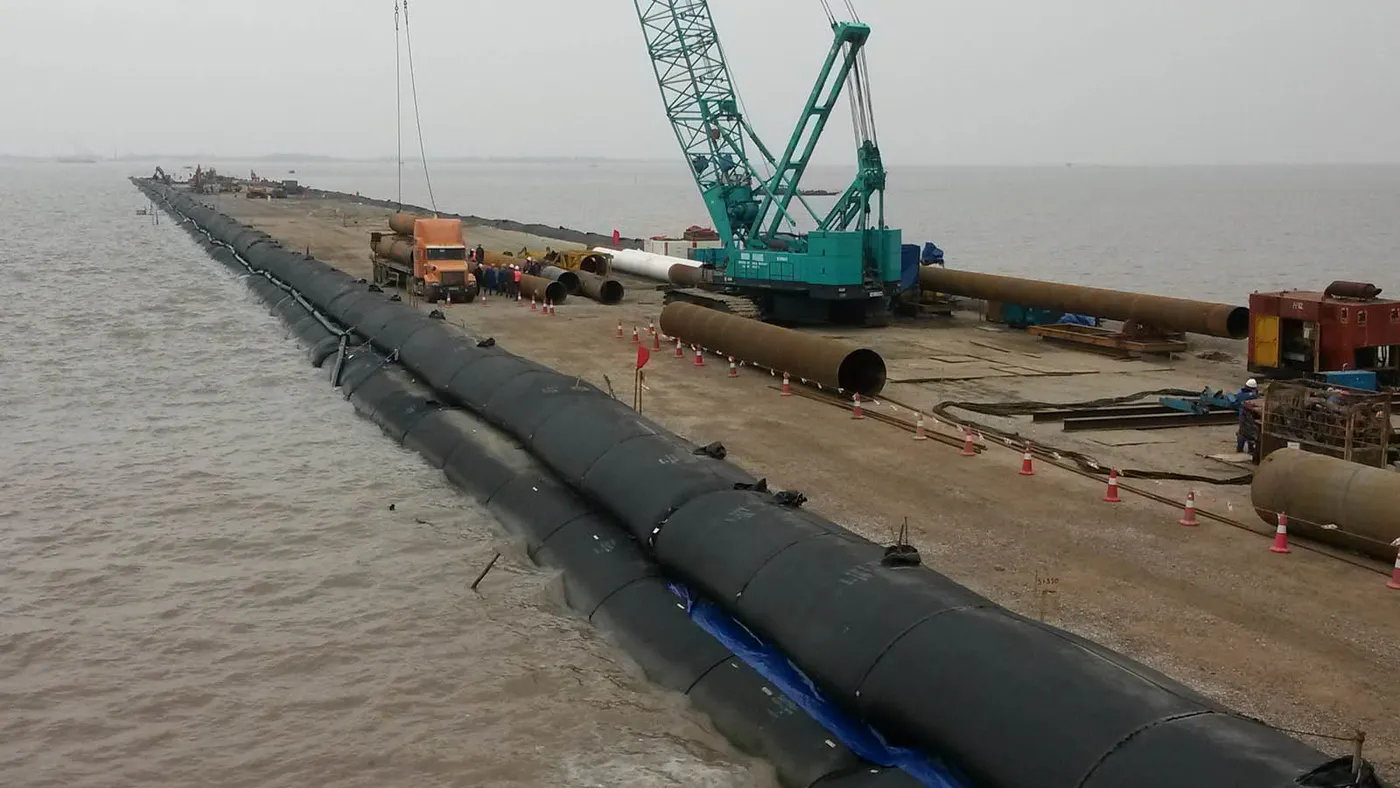

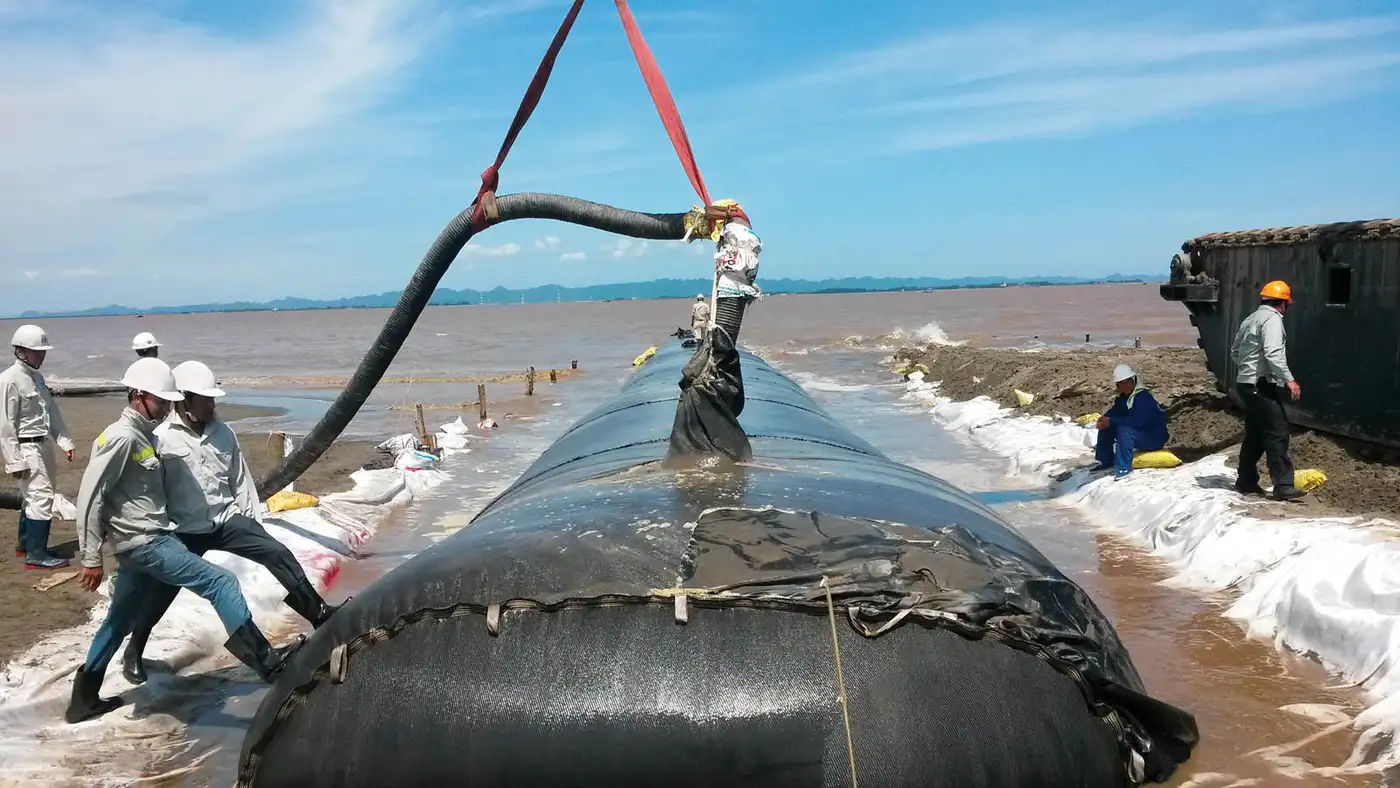

03 / Temporary Works

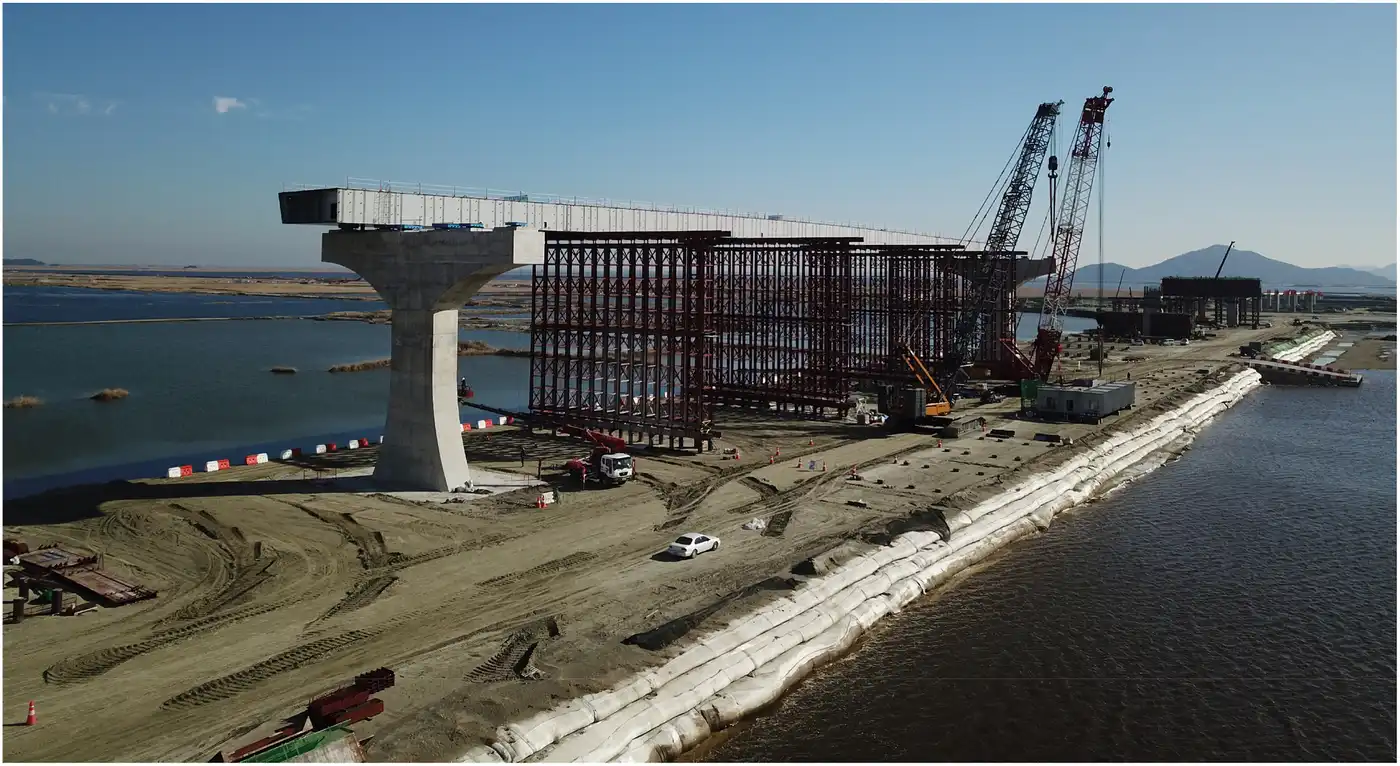

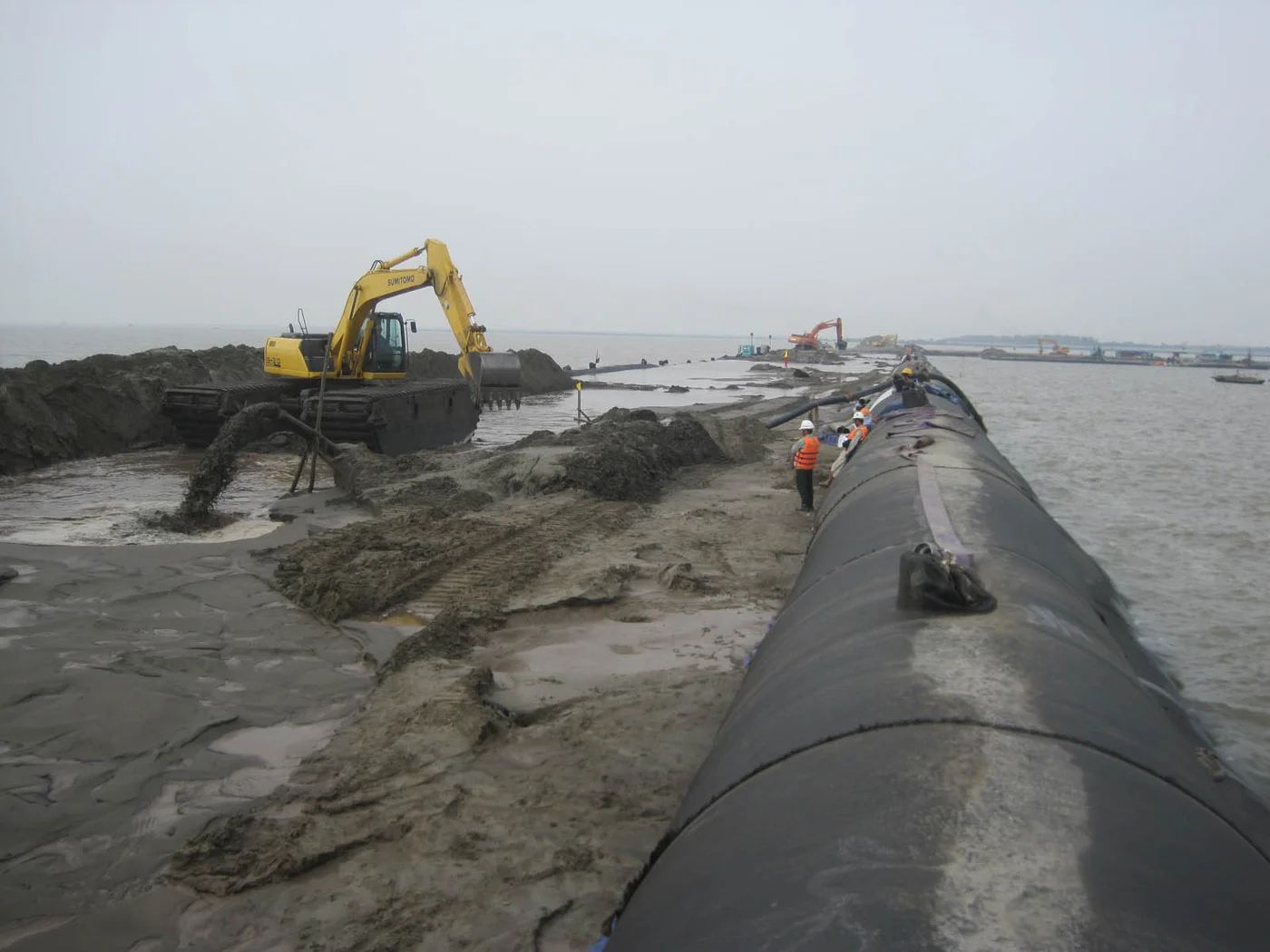

makeshift road
On tidal flats, muddy ground and offshore sites, sand-filled geotextile tubes create stable bases for temporary working platforms and access roads. Tubes can form a closed perimeter for granular backfill or be laid side by side beneath a crushed-stone surface, supporting construction traffic while adapting to soft-ground settlement.
Typical Project Challenges
- Heavy equipment sinking
- Very soft muddy subgrade
- Limited access for rock placement
- Temporary works removal and reuse
Working Platform
Access Road
Load Support
Reusable Sand Fill
Applicable Product

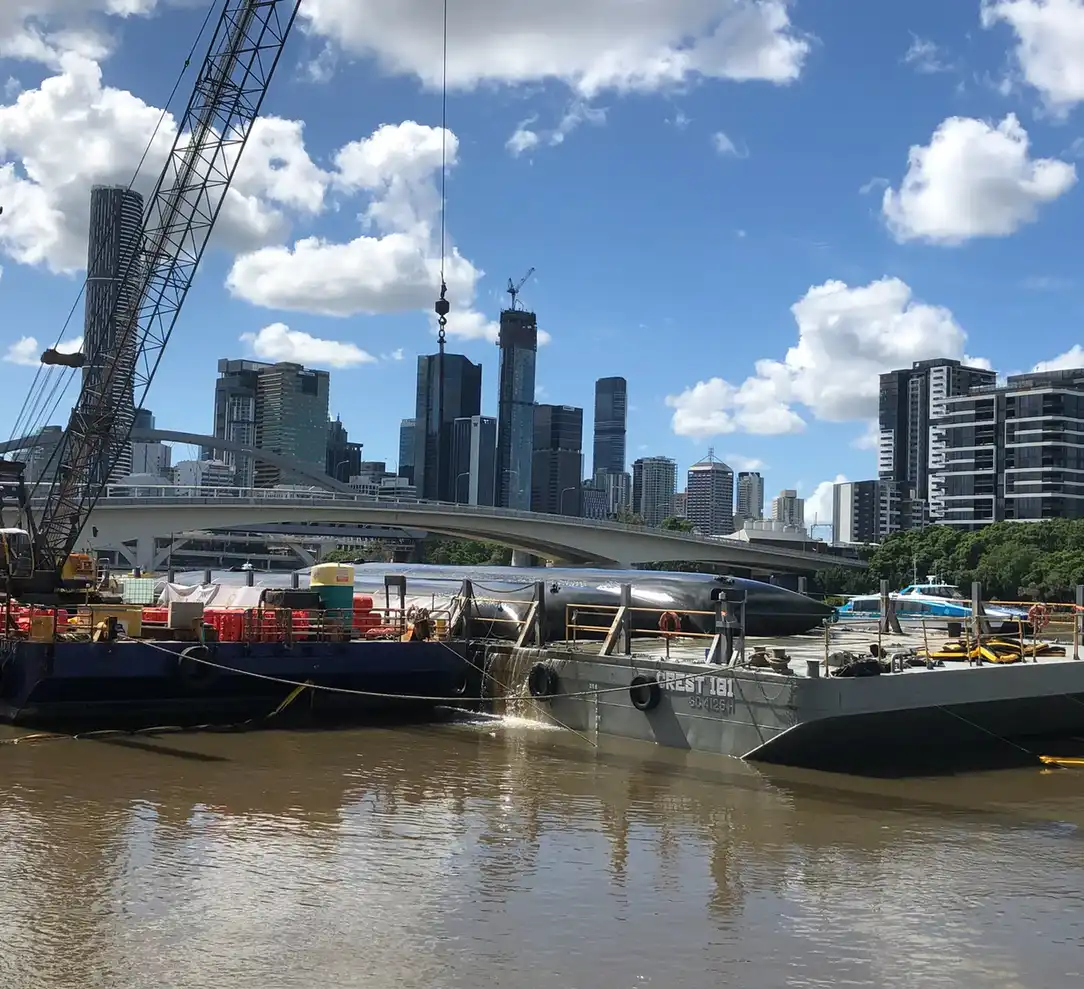

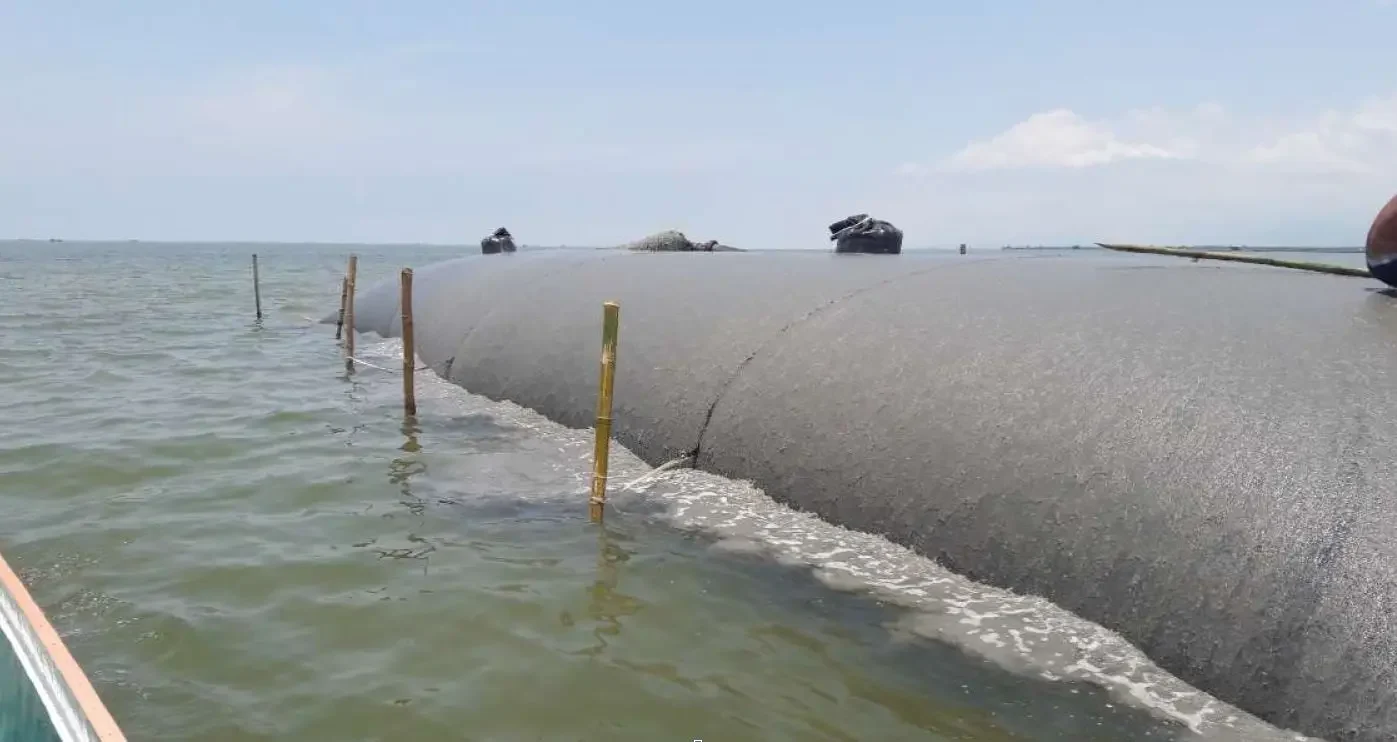

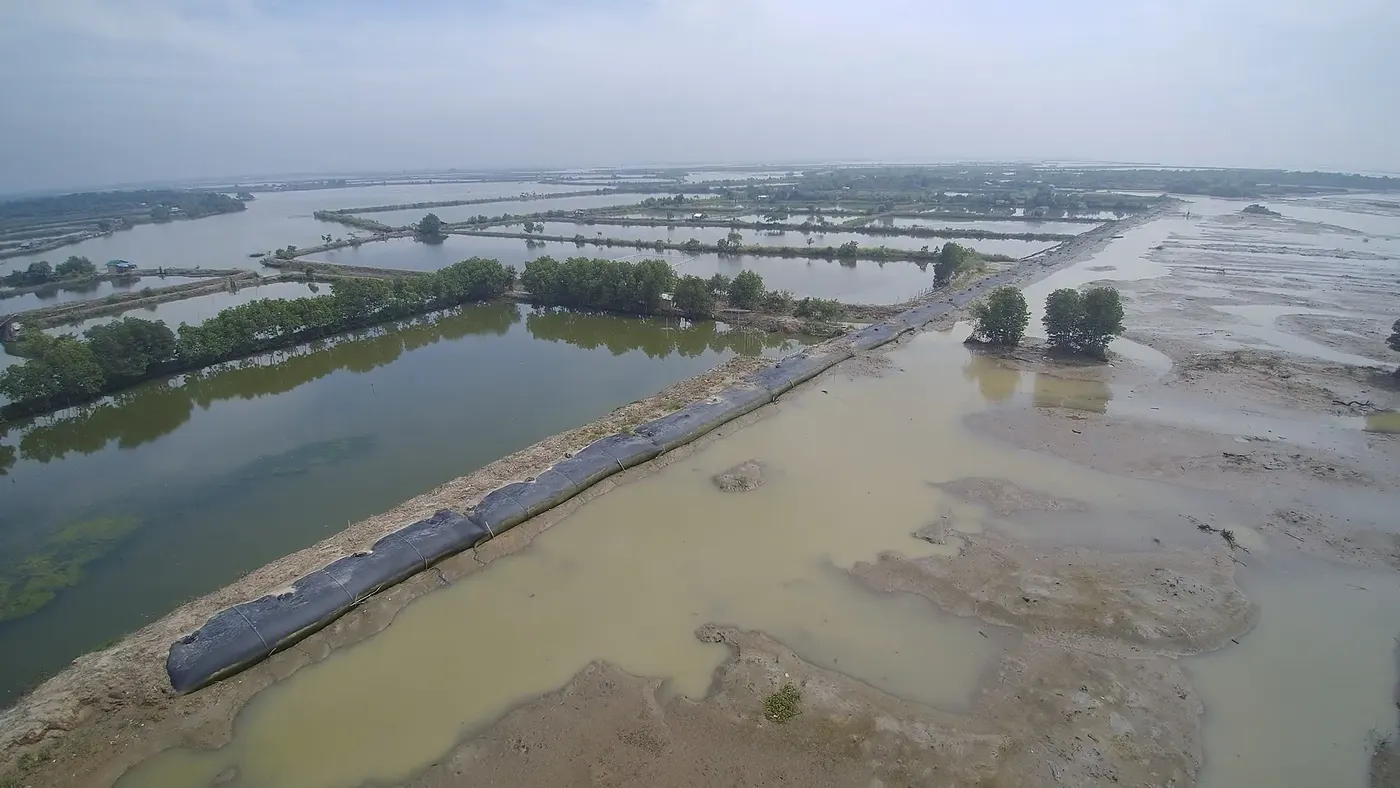

04 / River and Lake Dredging

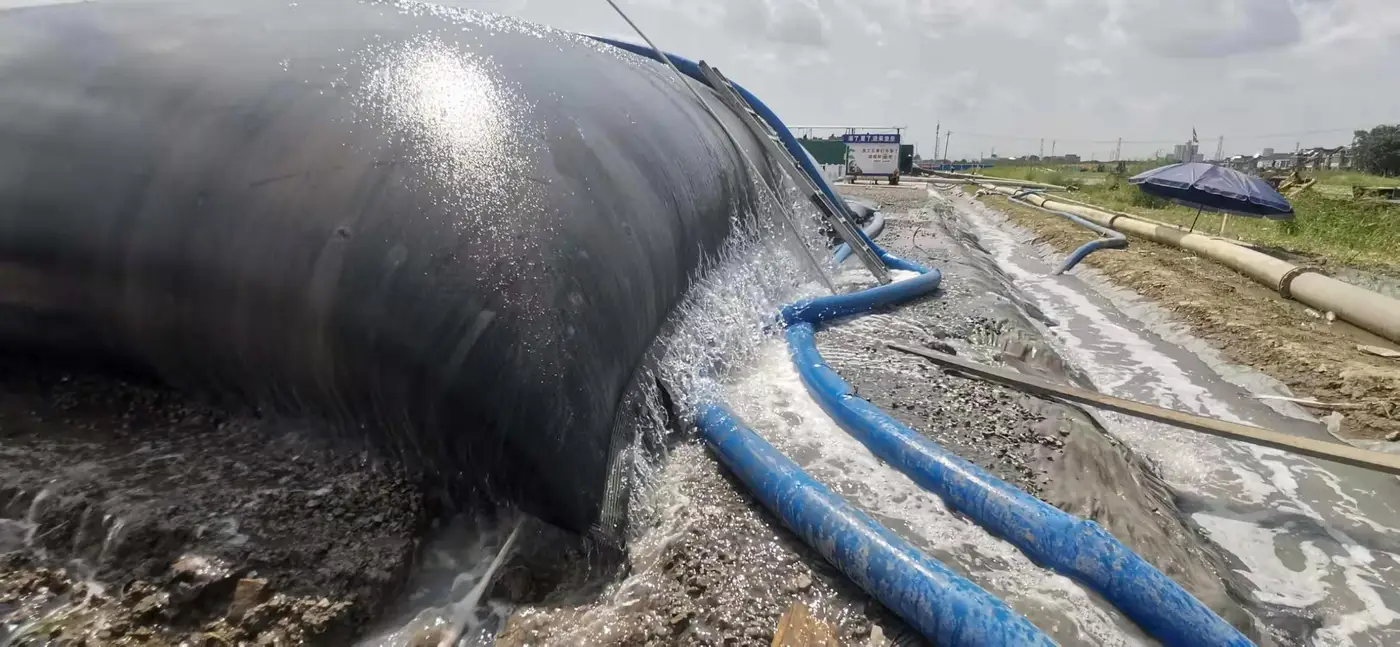

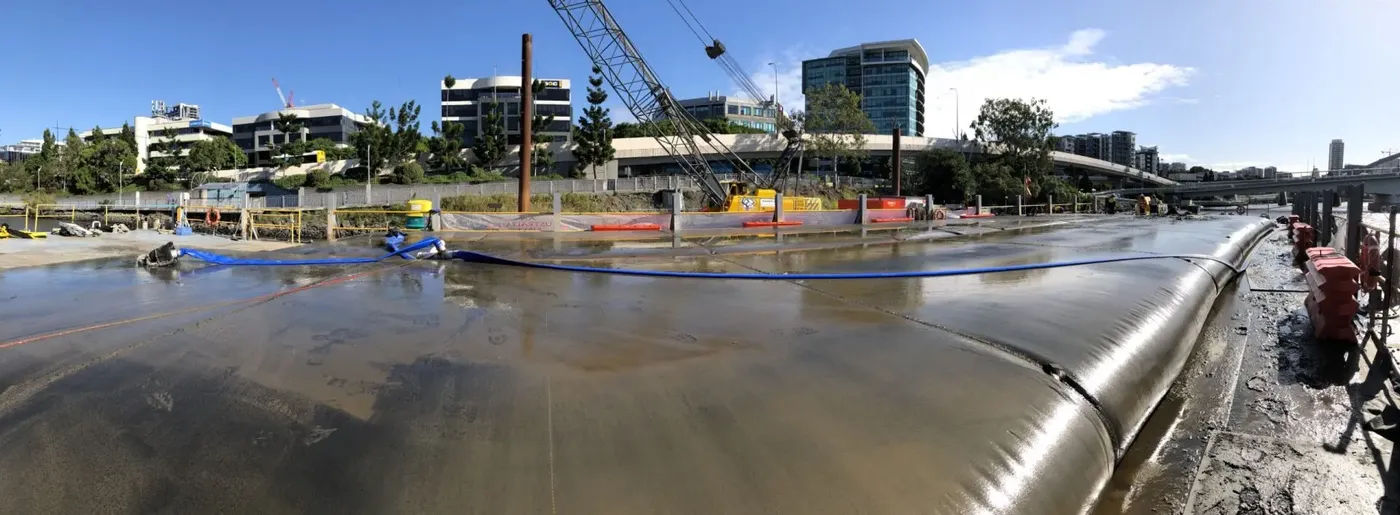

Silt dewatering

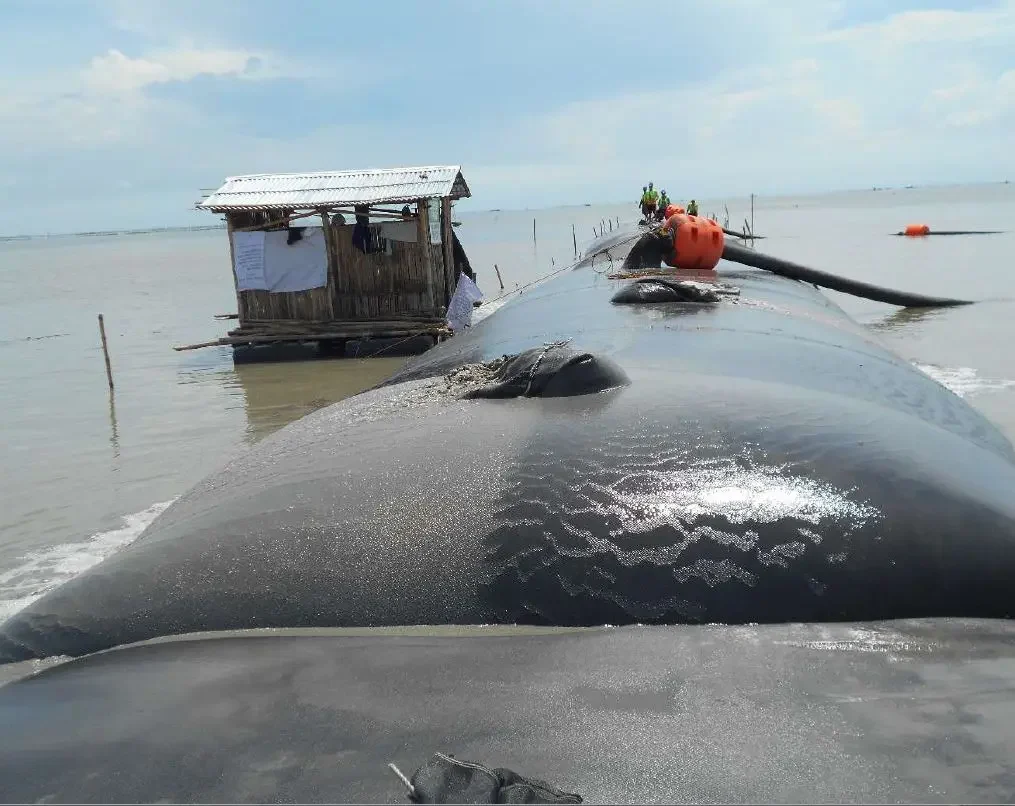

Dredged river, lake and reservoir sediment is pumped into high-strength woven geotextile tubes. The fabric releases free water while retaining solids; flocculant can accelerate separation. Repeated filling and gravity dewatering reduce moisture and volume, allowing filtrate return and enabling the consolidated sediment to be reused or transported more efficiently.
Typical Project Challenges
- Sediment moisture of 85-95%
- Large dredging volumes
- Transport leakage risk
- Filtrate collection and return
Sludge Dewatering
Solid Retention
Volume Reduction
Filtrate Recovery
Applicable Product

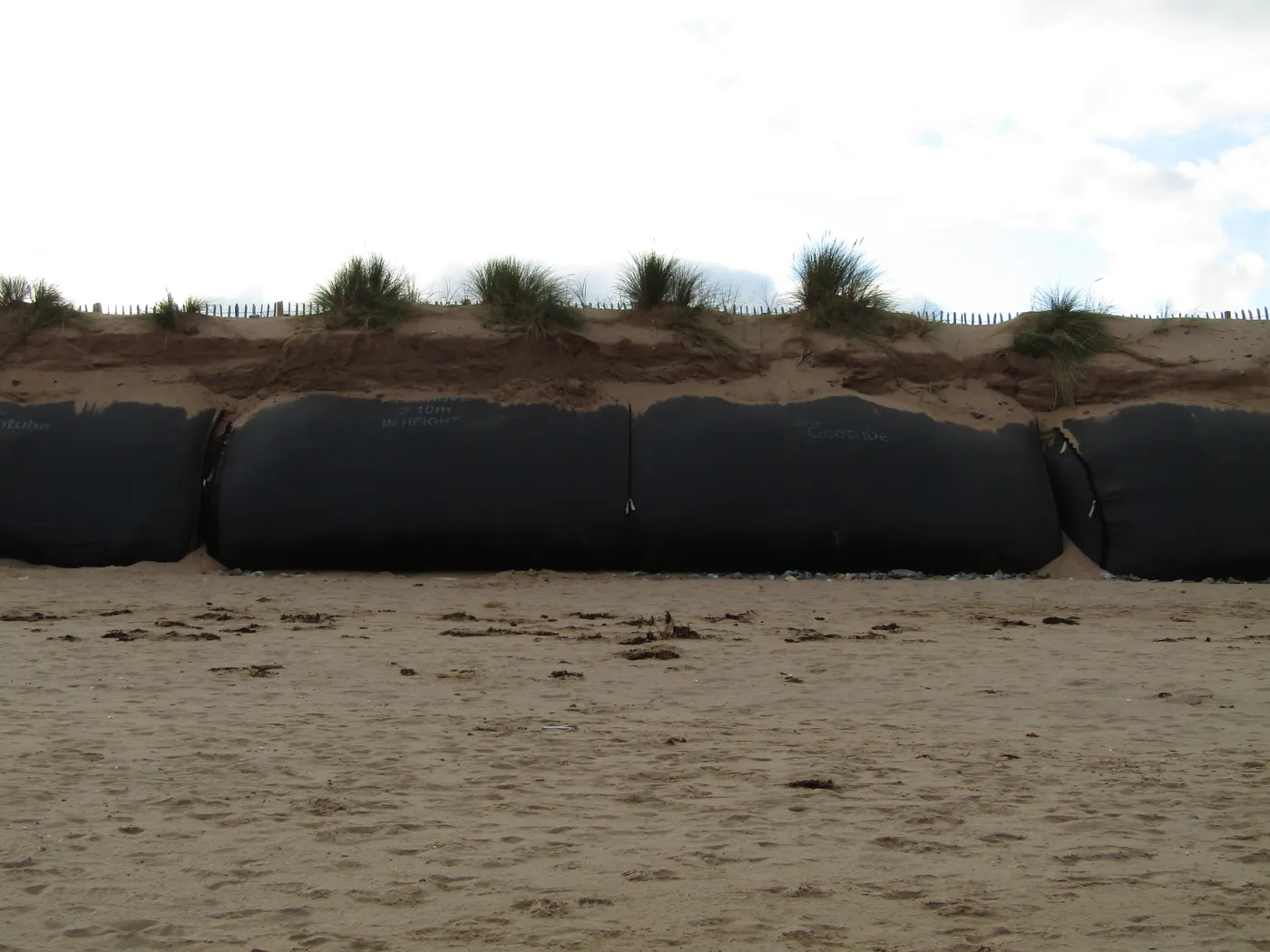

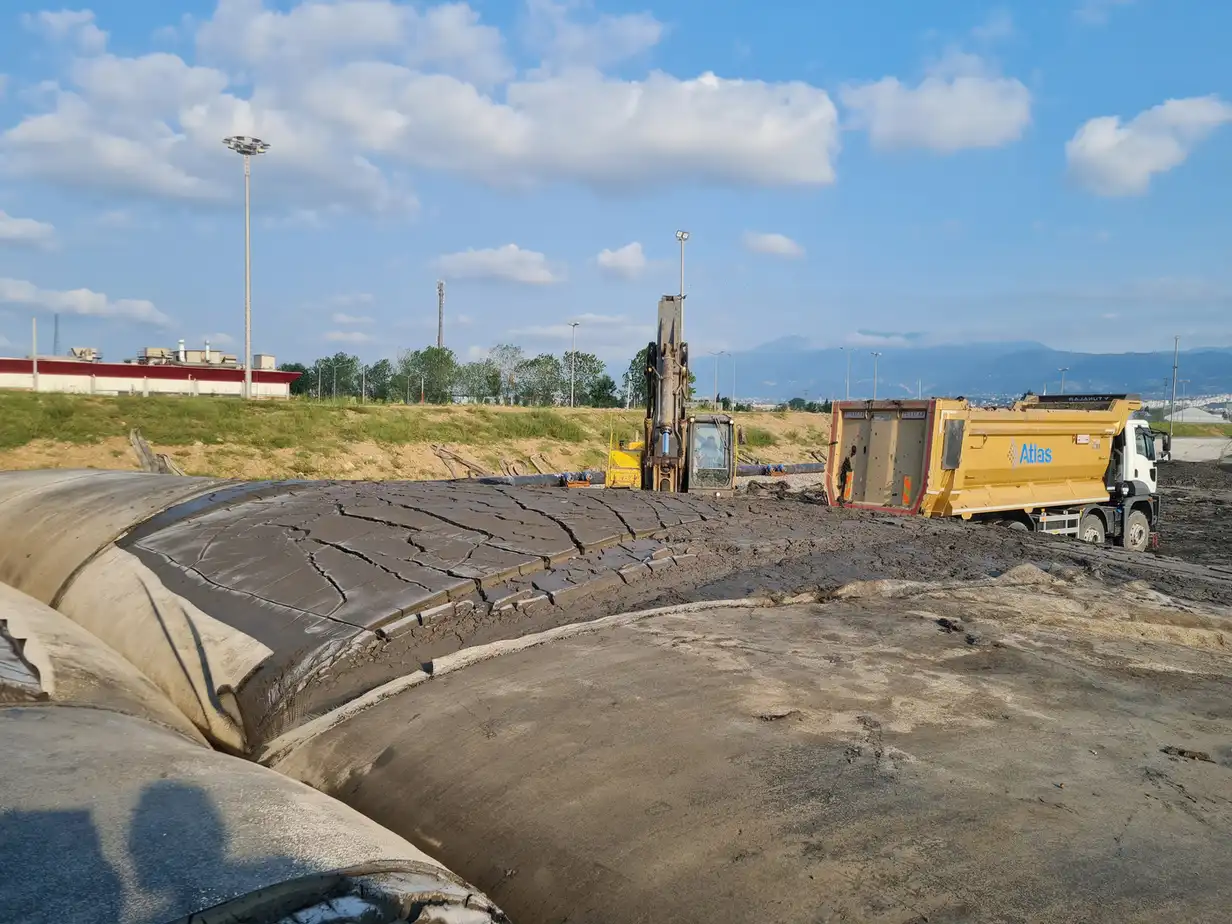

05 / Nature-Based Restoration

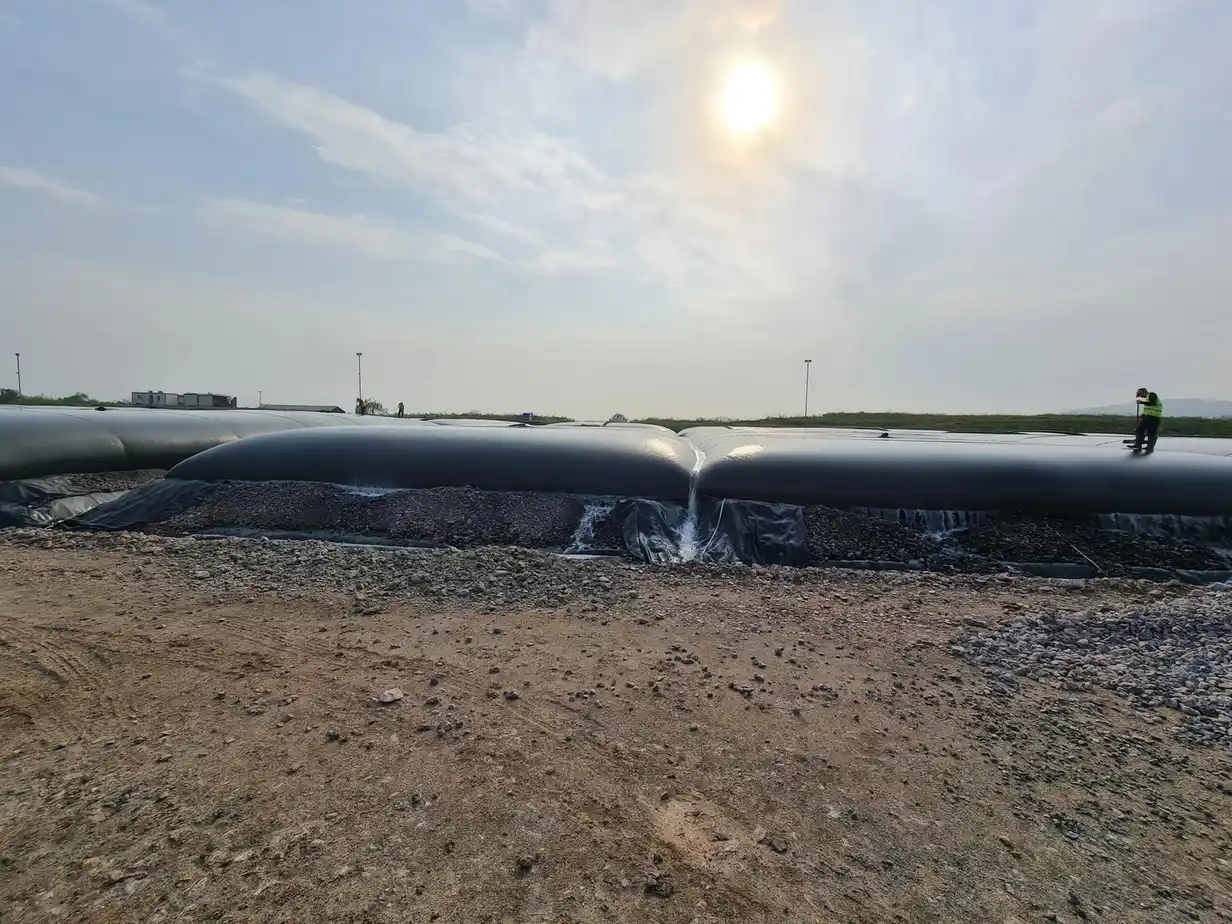

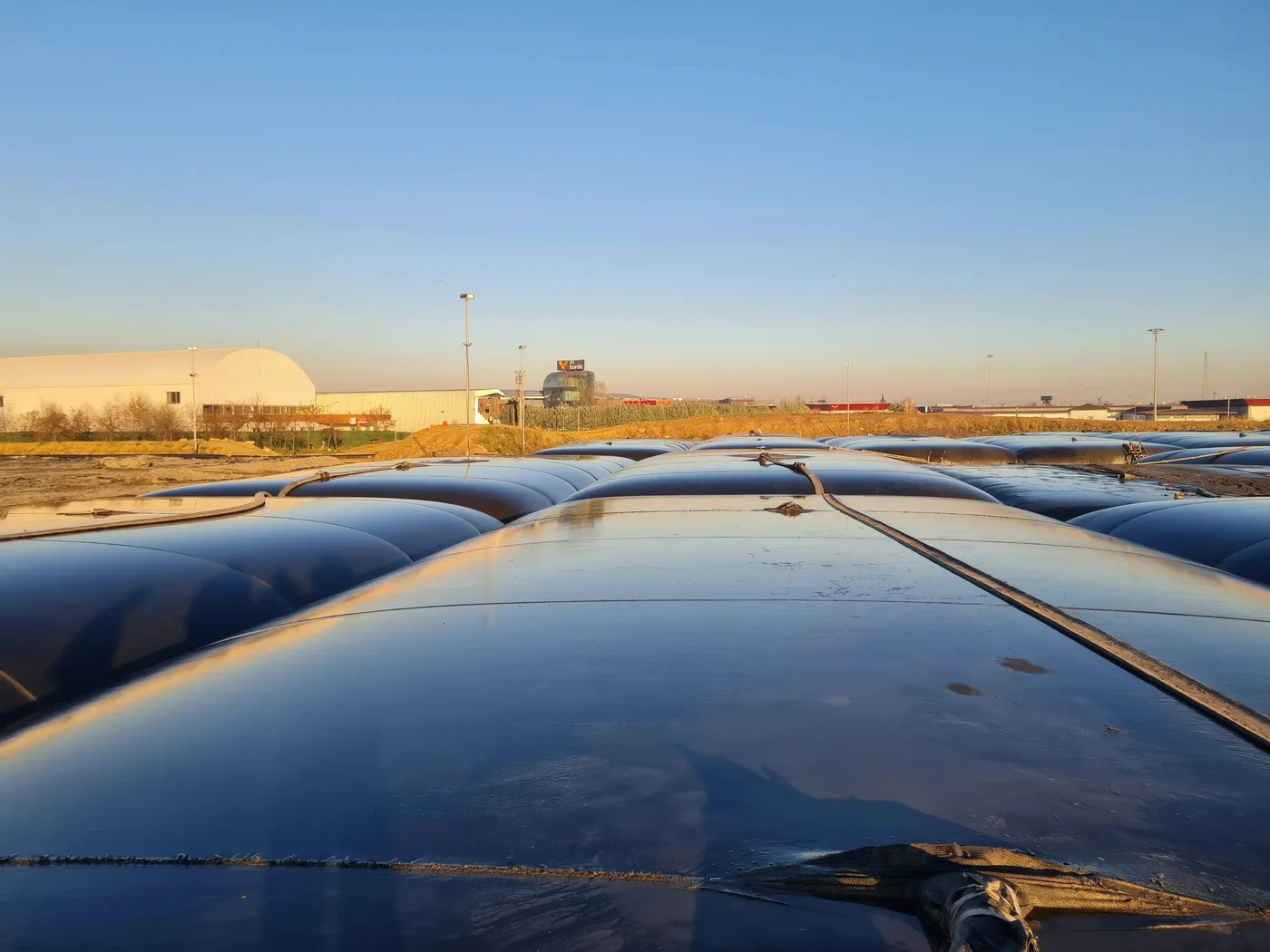

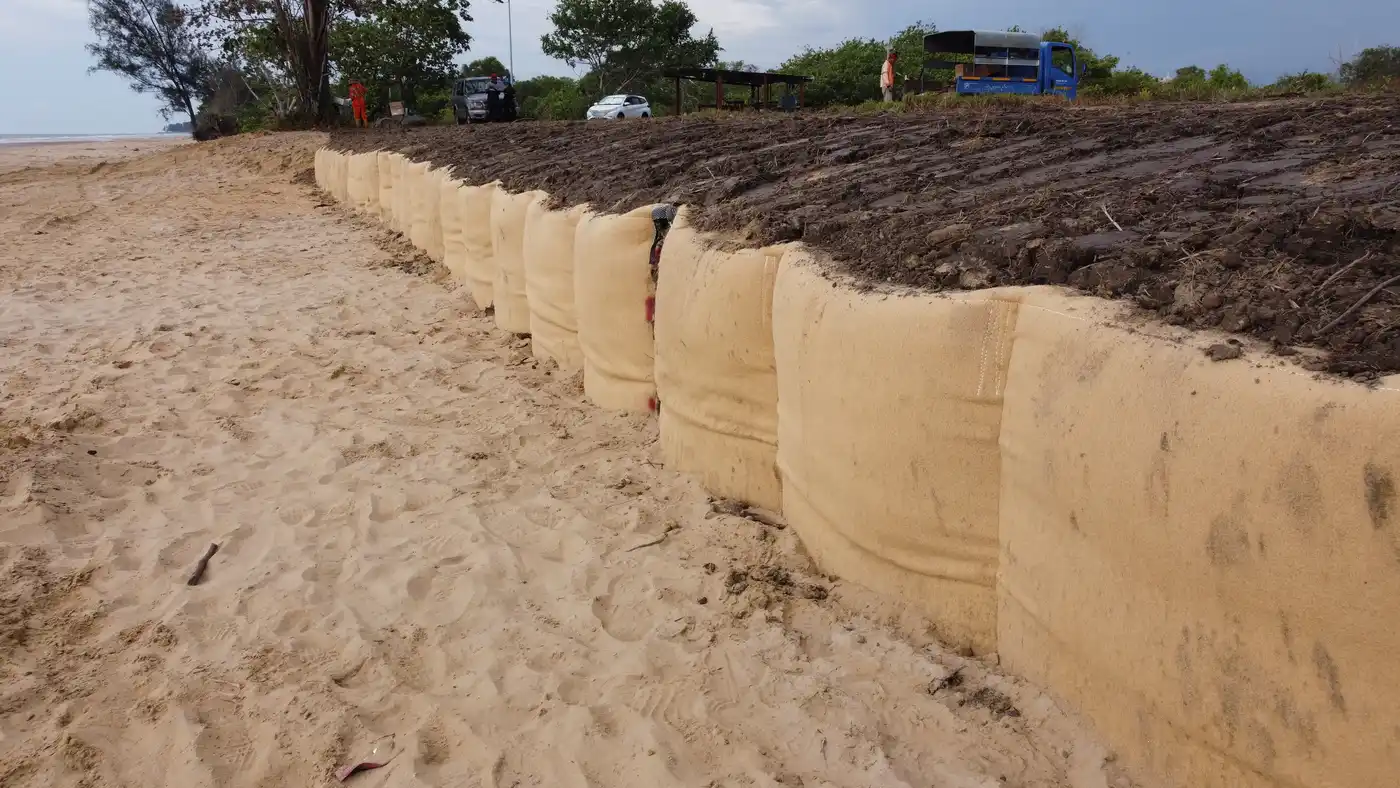

ecological remediation
Sand- or sediment-filled geotextile tubes act as flexible wave-attenuating barriers and micro-topography frames for ecological restoration. They slow water, encourage natural sediment deposition and protect young vegetation. After covering with soil or sand, the tube surface can support aquatic and salt-tolerant plants in wetlands, dunes and degraded riverbanks.
Typical Project Challenges
- Eroded habitat substrate
- Wave stress on young plants
- Loss of tidal-flat elevation
- Demand for low-impact materials
Nature-Based Solution
Habitat Protection
Sediment Reuse
Dune Restoration
Applicable Product

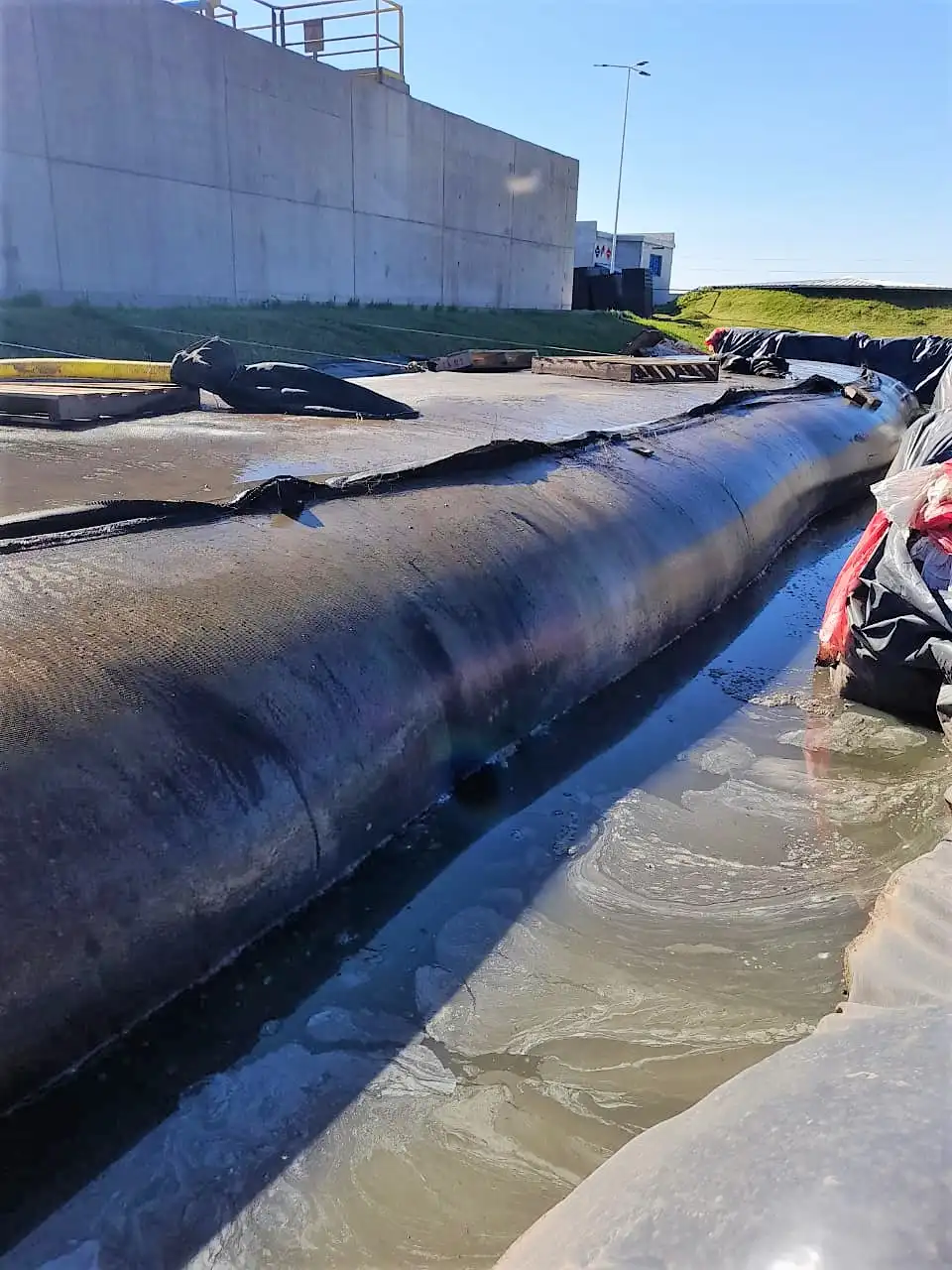

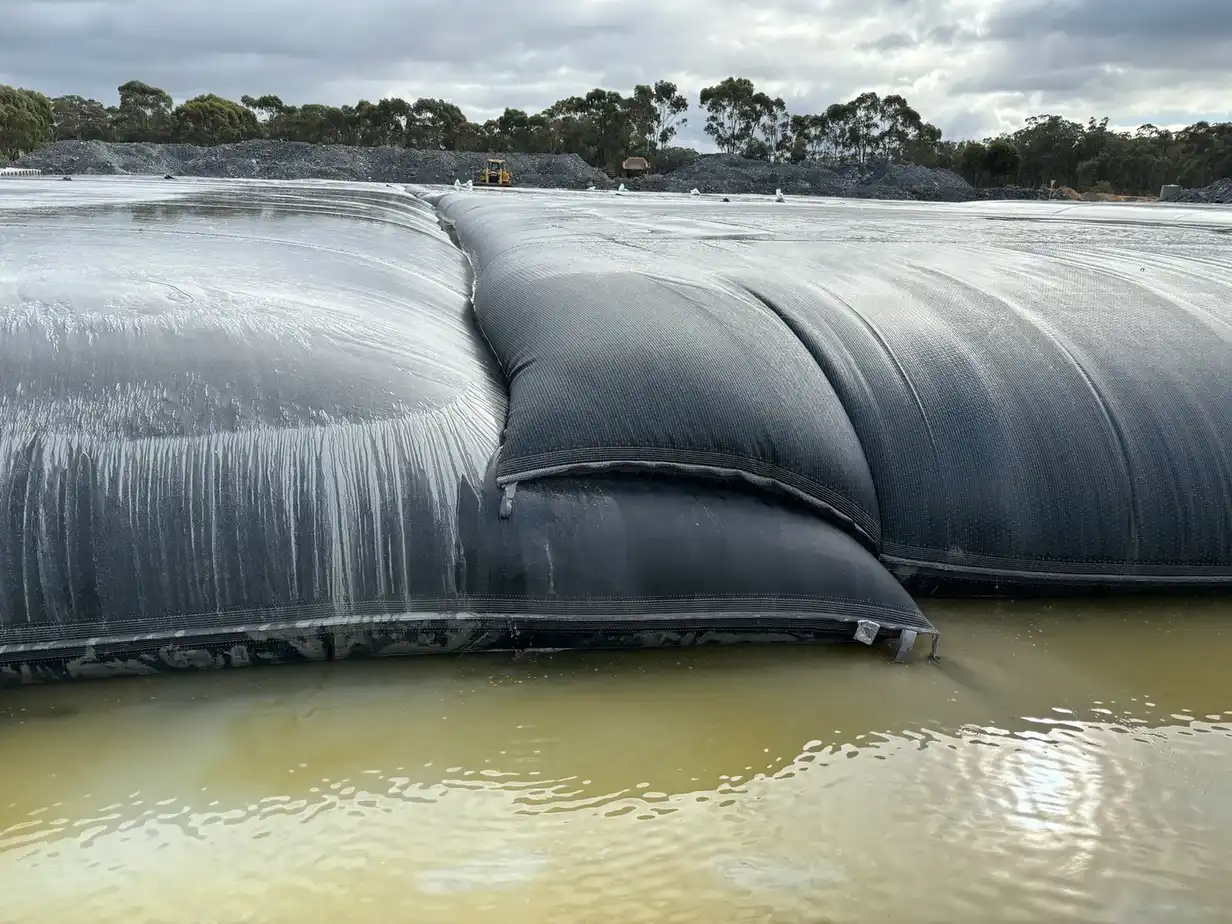

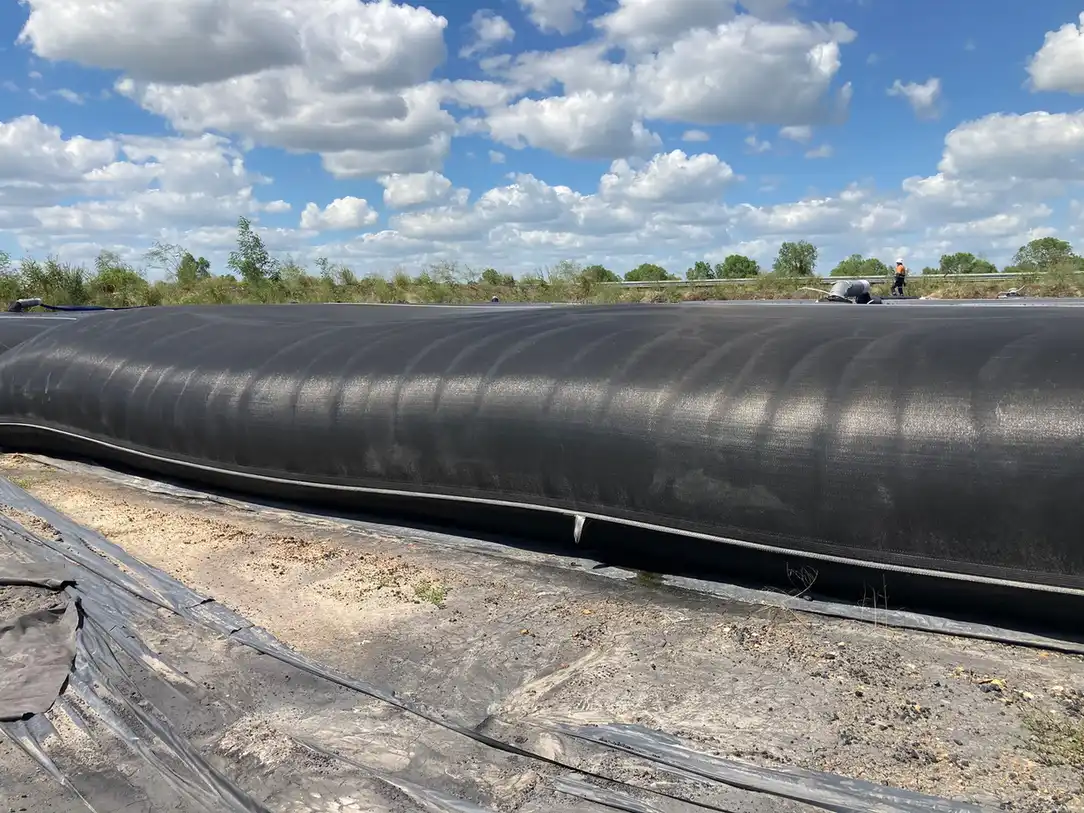

06 / Industrial Waste Treatment

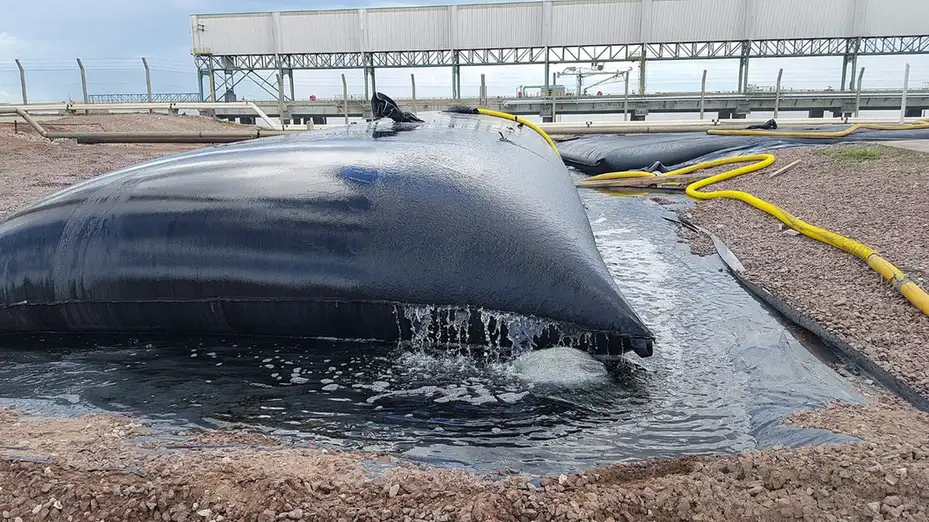

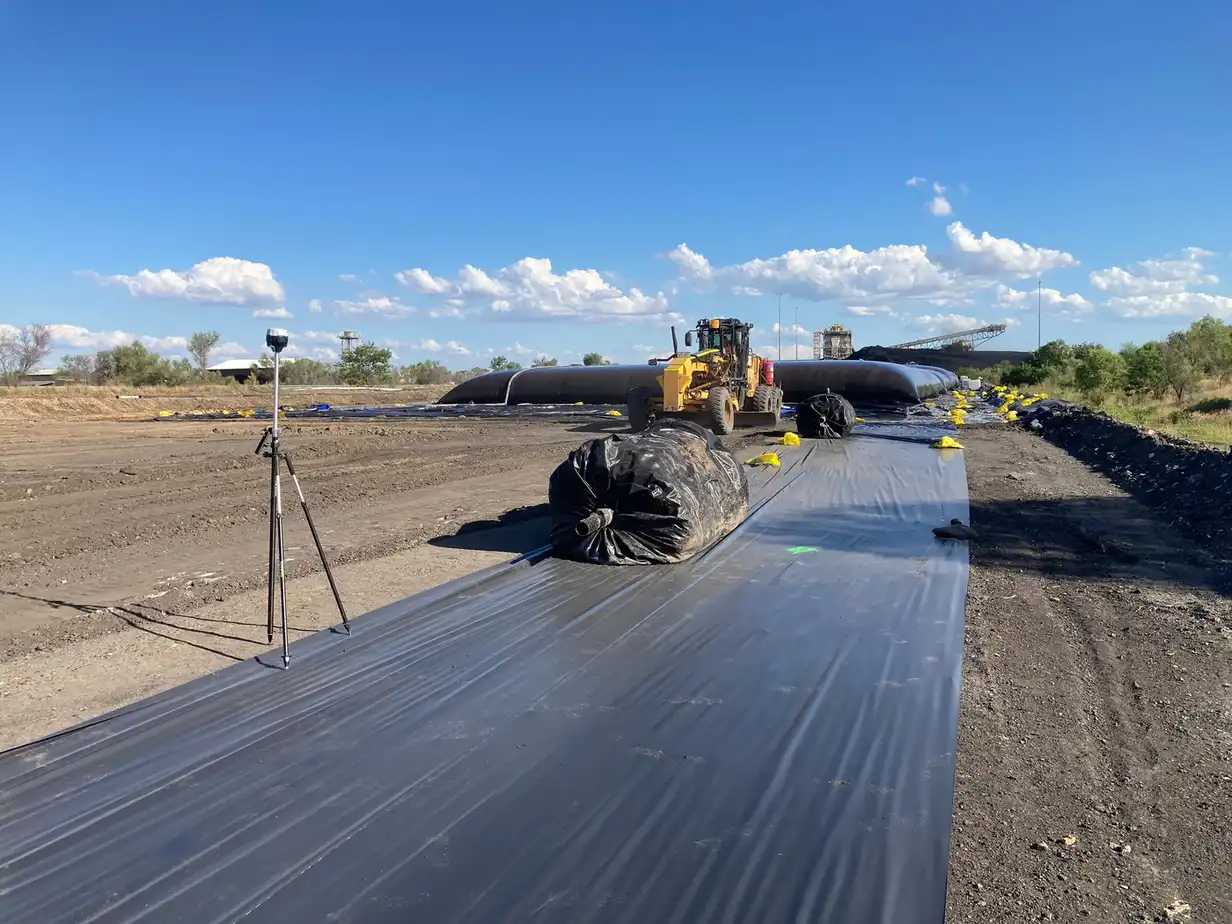

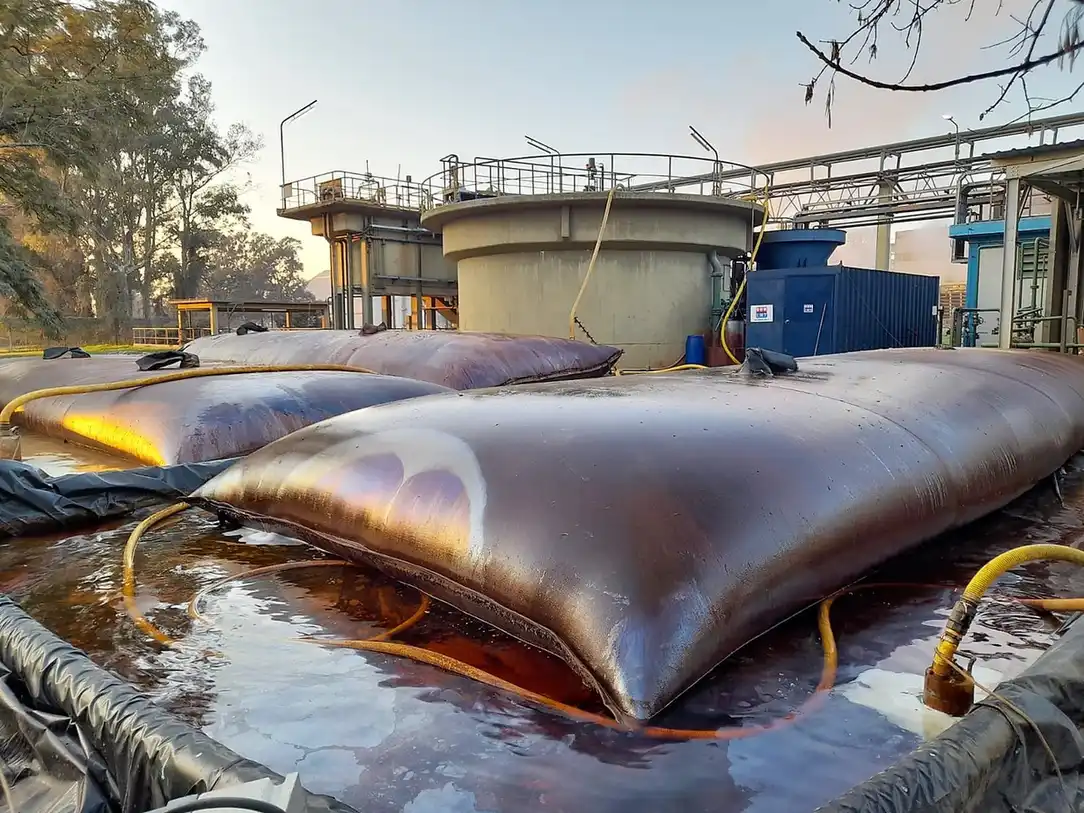

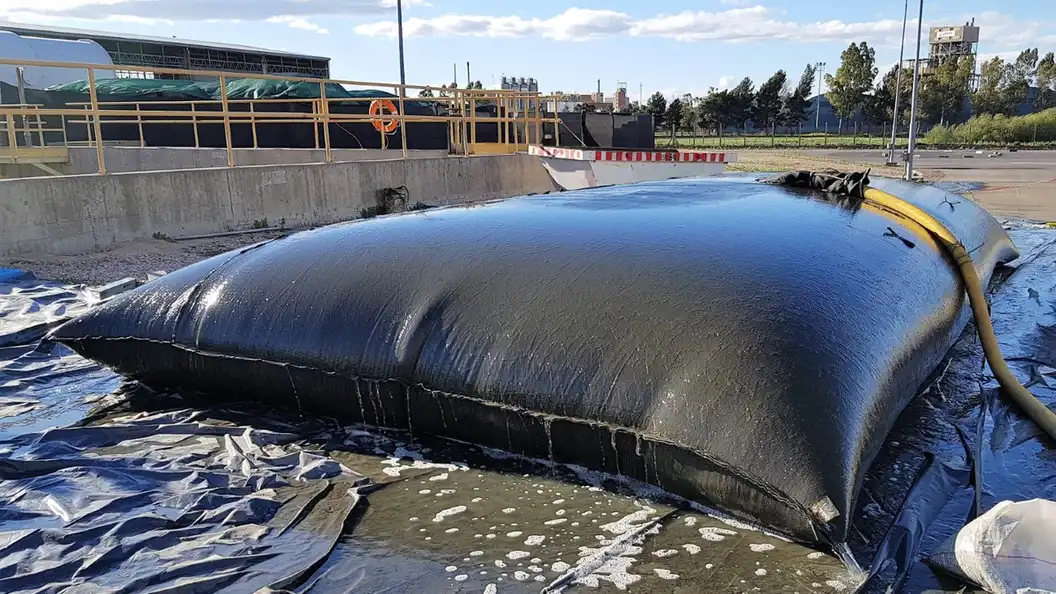

Industrial sludge dewatering
Conditioned industrial sludge or mine-tailings slurry is pumped into woven geotextile tubes for filtration and gravity consolidation. Free water exits as collectable filtrate while solids remain inside and dry into a reduced-volume cake. The method suits plant retrofits, remote mine sites and stock-sludge pond cleaning without a permanent filter-press building.
Typical Project Challenges
- Sludge moisture of 85-98%
- High haul-out cost
- Remote or temporary sites
- Controlled filtrate management
Industrial Sludge
Mine Tailings
Solid-Liquid Separation
Waste Volume Reduction
Applicable Product

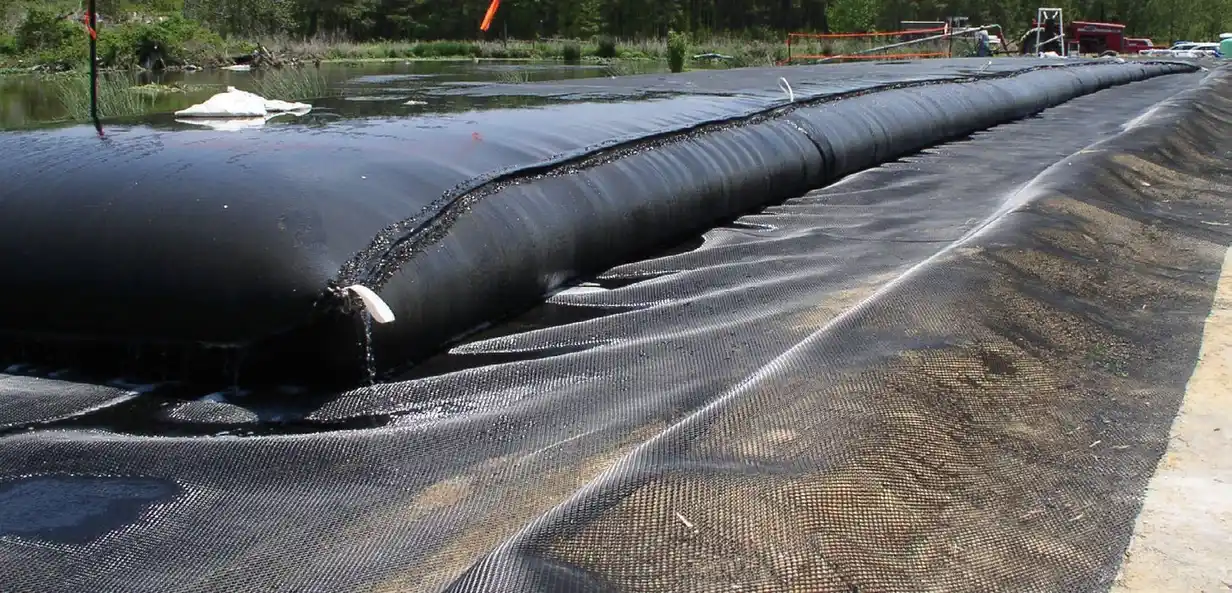

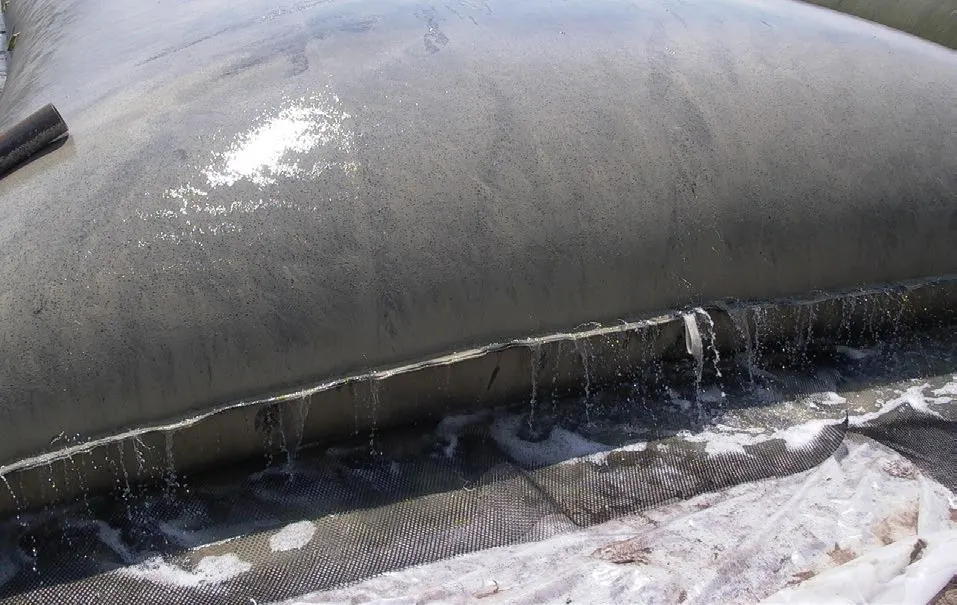

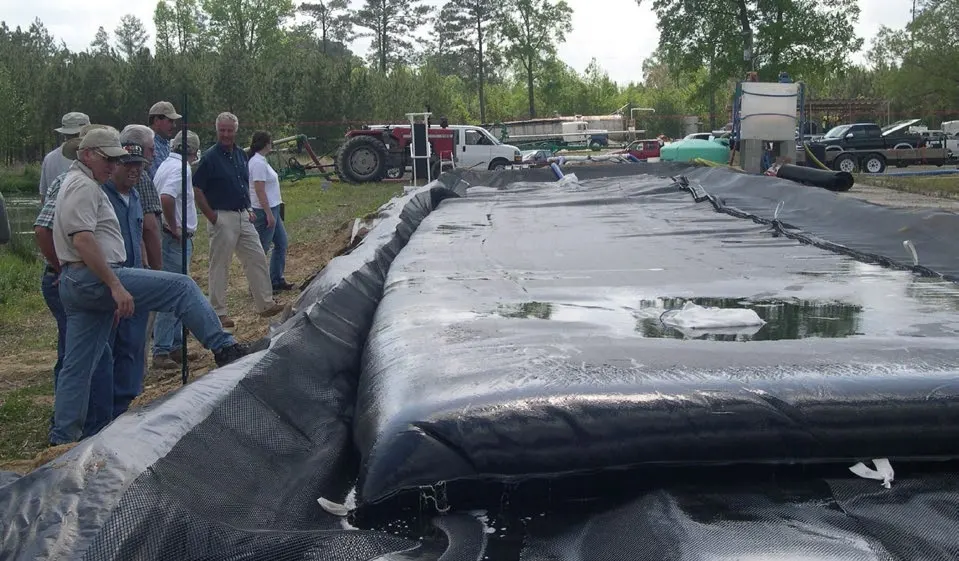

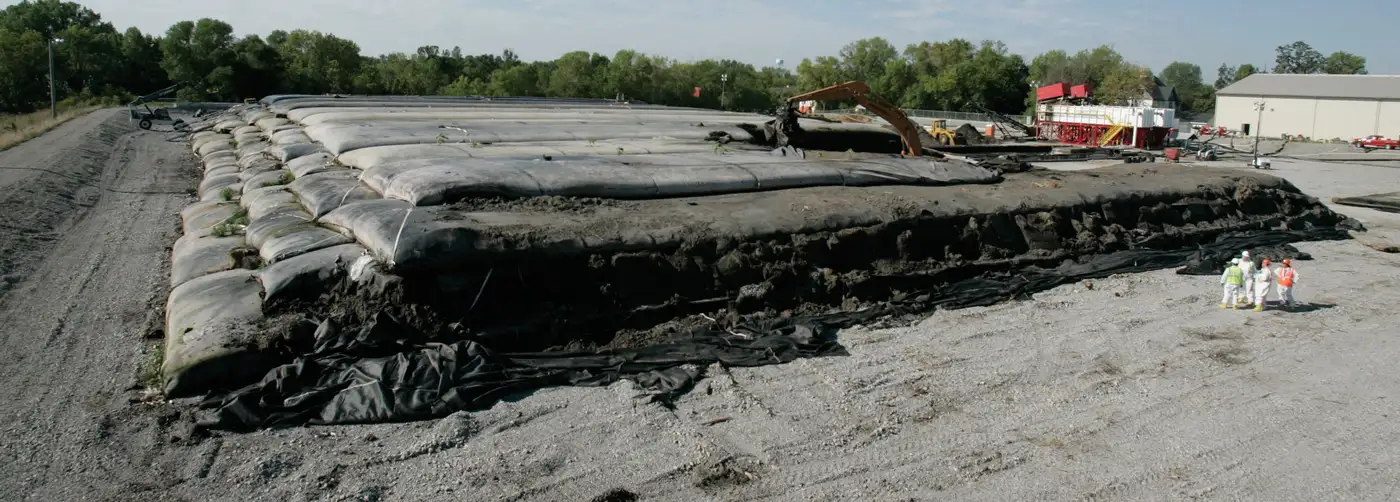

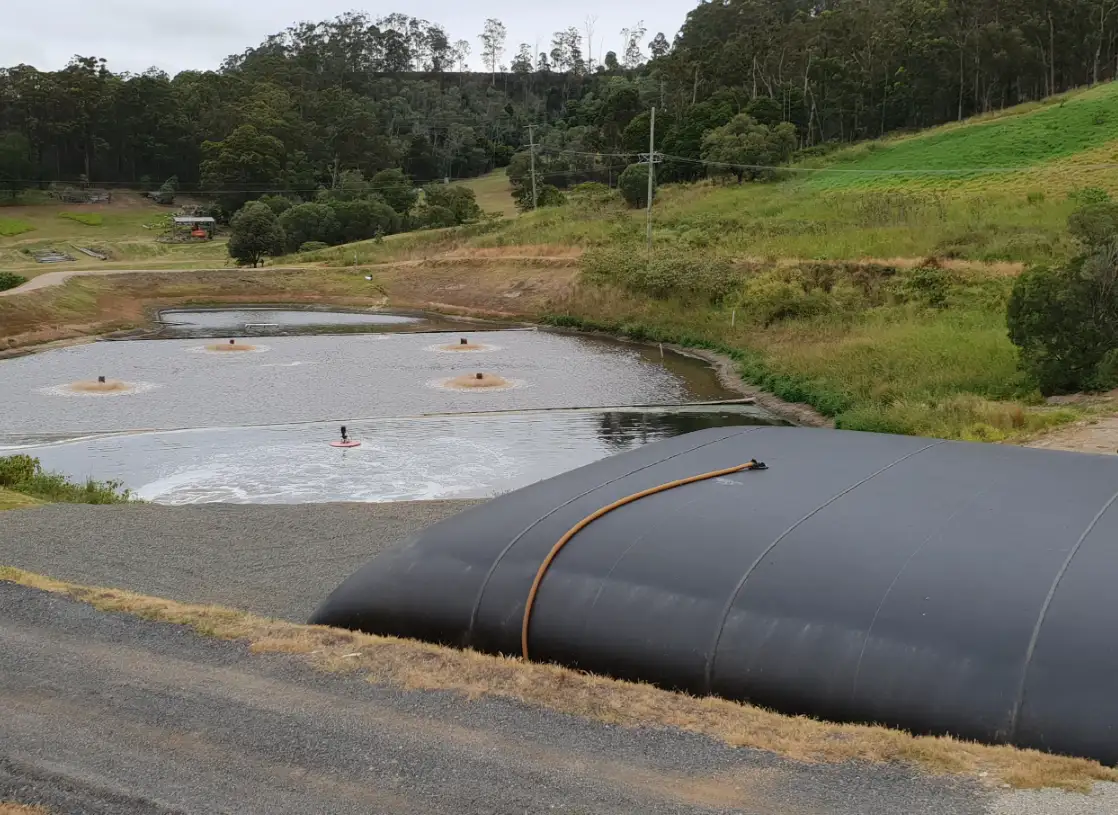

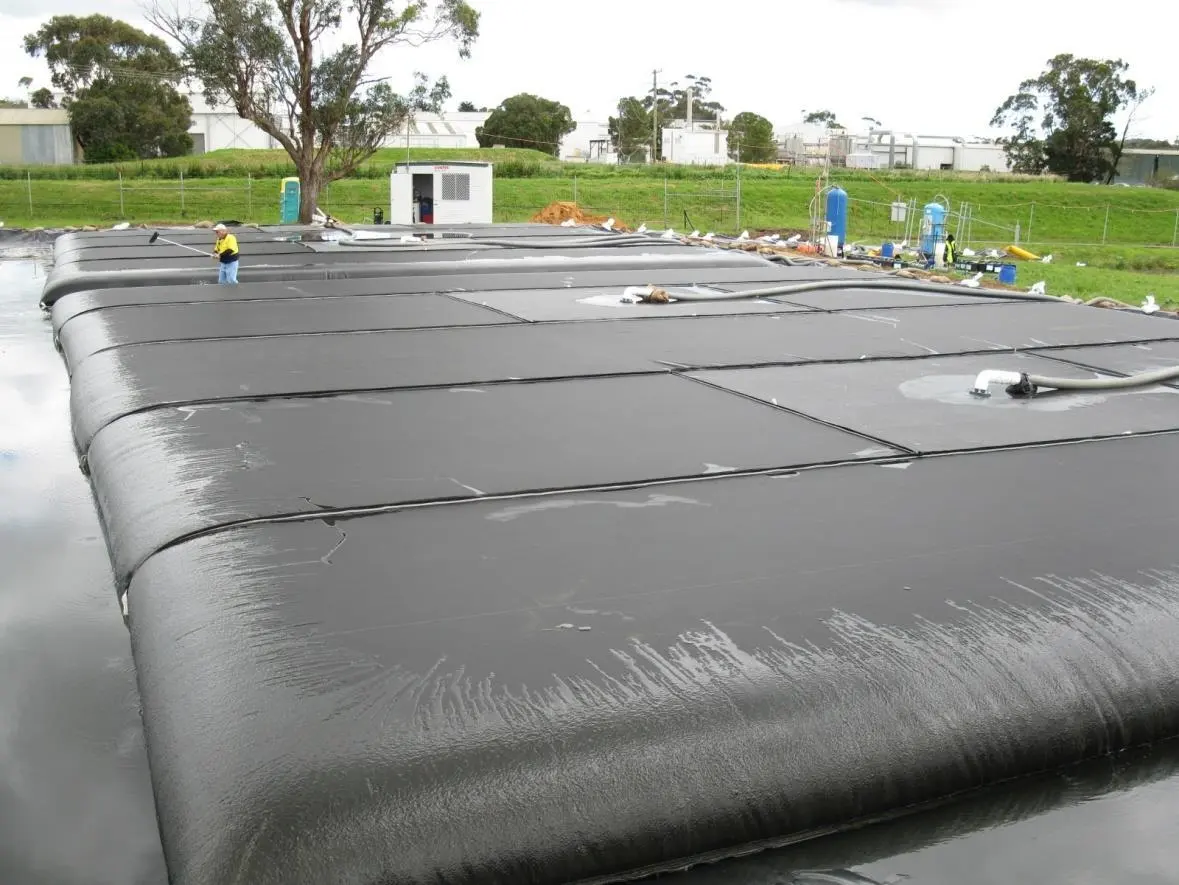

07 / Agricultural Wastewater

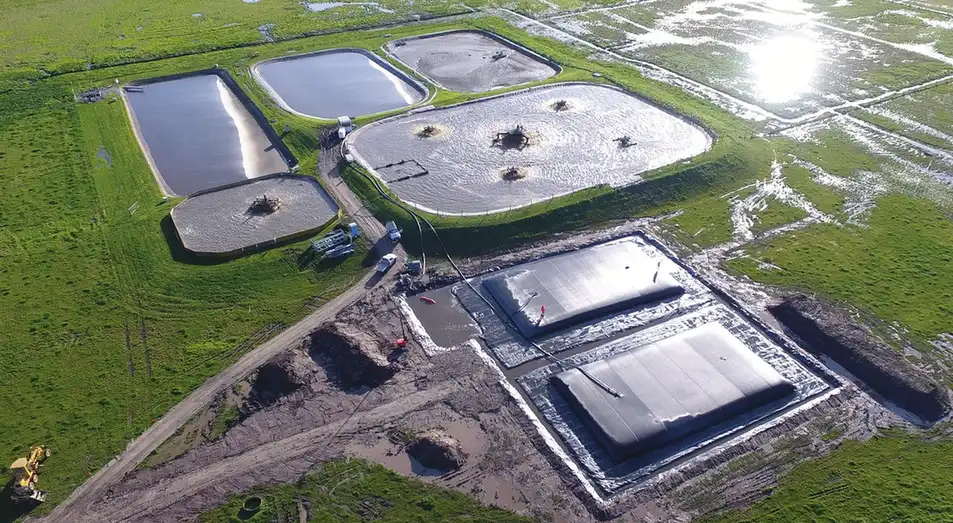

agricultrue waste water
Livestock manure slurry, lagoon sediment and biogas residue are conditioned and pumped into geotextile tubes. Water drains as filtrate while organic solids consolidate into a soil-like cake, reducing storage volume and overflow risk. Filtrate may return to the lagoon or irrigation system, while composted solids can support fertilizer or land-application programs.
Typical Project Challenges
- Manure moisture of 90-98%
- Fine organic particles
- Odor and overflow risk
- Nutrient recovery requirements
Manure Dewatering
Lagoon Cleaning
Nutrient Recovery
Farm Waste Reduction
Applicable Product
Working Process
Fill, Dewater and Consolidate
Project performance depends on tube size, fabric tensile strength, apparent opening size, seam capacity, pumping rate, flocculant selection and a prepared drainage area.
1. Hydraulic Filling
Sand, dredged sediment or conditioned sludge is pumped into the tube through filling ports.
2. Controlled Dewatering
Free water filters through the woven fabric while target solids remain inside the tube.
3. Final Consolidation
Repeated filling and gravity drainage create a stable structural fill or reduced-volume cake.
Project Support
Plan the Geotextile Tube Around the Actual Material and Site
Share the slurry or fill type, solids concentration, project volume, tube footprint, pumping conditions and required service life. Our team will recommend the tube dimensions, fabric properties and filling process.
